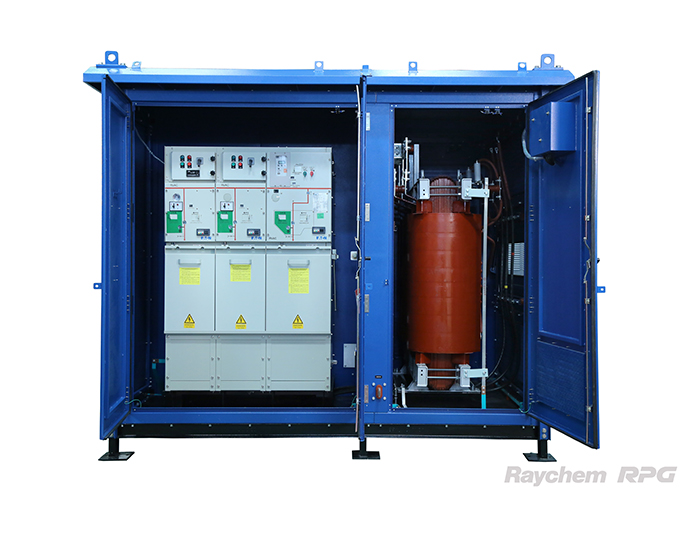

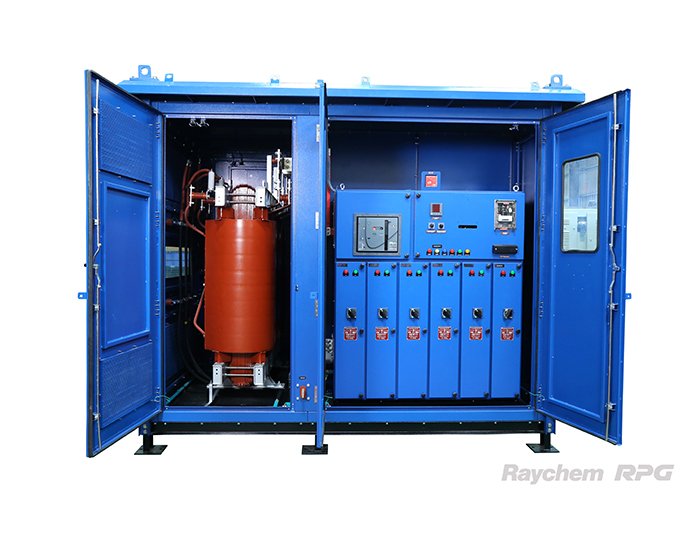

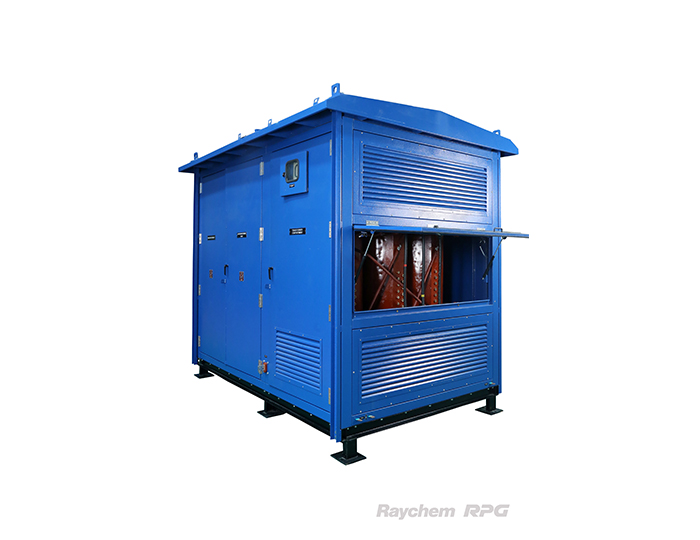

Space and cost saving solution with unique features
- Lesser footprints than most compact substations
- Reduced lead time and faster assembly
- Electrically interlocking doors
- Improved aesthetics
- Ease of inspection and maintenance
- more...
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us transformers@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Quick Links
Specifications
| Parameter | Value |
|---|---|
| Ratings | Up to 2500 kVA |
| Voltage Class | Up to 33 kV |
| Frequency | 50/60 Hz |
| HT Side | RMU / VCB / Fused Isolators (up to 33kV) |
| LT Side |
Incomer: ACB / MCCB / SFU Secondary Feeders: ACB / MCCB / SFU / Fuses |
| Transformer | Oil type & Dry Type |
| Protection & Metering | Yes |
Technical Information
| Parameter | Value |
|---|---|
| Type tested as per IEC 62271-202 for | Internal Arc Test (20 k Amp for 0.1 sec) |
| IP class (up to IP 54) | |
| Temperature rise (K5) | |
| Mechanical impact (IK10) | |
|
Short time current withstand test on inter-connection |
|
| Inspection windows available as per client requirement | |
| Interconnection accessibility for maintenance | |
| Thermally efficient transformer enclosure | |
| 1MVA, 11kV CSS footprints: 5.25 sq m | |
| Supply segments | Industries |
| Infrastructure | |
| Utility |
