Raychem RPG Diaphragm, Prepaid and Postpaid Gas Meters

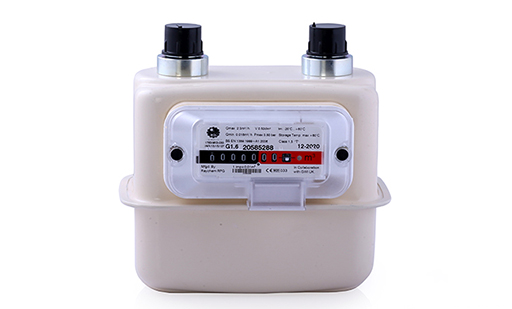

Residential Diaphragm Gas Meter - G1.6

Overview:

Raychem RPG makes residential gas meters (Mechanical standard version) that are designed according to the European Standard EN1359 to measure the consumption of gas in households and at other consumers, where the maximum consumption of all gas appliances does not exceed 2.5 m3/h in case of gas meter G1.6 of the air of density 1.2 kg/ml. They are suitable to measure the consumption of natural gas, synthetic gases and their mixtures. They can optionally be equipped with low frequency pulse transmitter or the Post-paid AMR Module manufactured and supplied by RAYCHEM RPG.

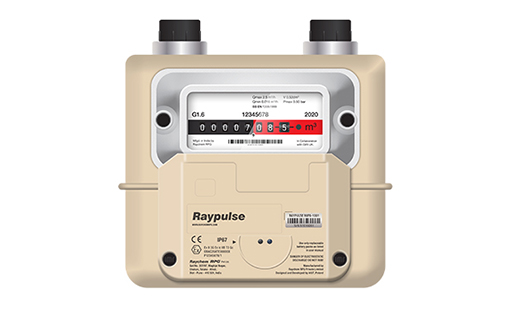

Smart Postpaid Gas Meter

Overview:

RAYPULSE Rxx6 is a Raychem Module dedicated for Raychem G1.6 diaphragm gas meters. The device registers readouts as well as magnetic and tamper detection and transmits the data to back-office server. RAYPULSE Rxx6 is designed for walk-by* gas metering as well as fixed metering which makes it the most cost-effective solution for commercial and residential applications.

Features:

• Daily readout including current device state and ambient temperature
along with daily gas consumption in m3
• Tamper detection: lid opening, external magnet, exceeding Qmax
or operational temperature range
• Scheduled daily readouts
• Server initiated query - command (remote valve cut-off)
• Easy data synchronization, configuration & installation

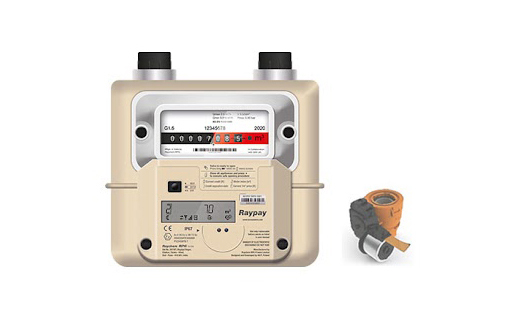

Smart Prepaid Gas Meter

Overview:

RAYPAY Rxx6 is a Raychem Prepaid Module dedicated for Raychem G1.6 diaphragm gas meters equipped with internal valve. The device registers readouts and transmits consumption data to back office server. RAYPAY Rxx6 enables to control the valve remotely, without accessing the customer's premises. It also helps to reduce the costs of hard execution and promotes good payment behavior among consumers. The module is designed for walk- by* gas metering as well as fixed metering which makes it the most cost-effective solution for commercial and residential applications.

Features:

• BLE on-site operations
• Historical credit, balance and consumption data
• Daily readout: current device state, temperature, daily consumption
• Tamper detection: lid opening, external magnet, exceeding Qmax or operational temperature range
• Scheduled daily readouts
• Server initiated query - command (remote valve cut-off)
