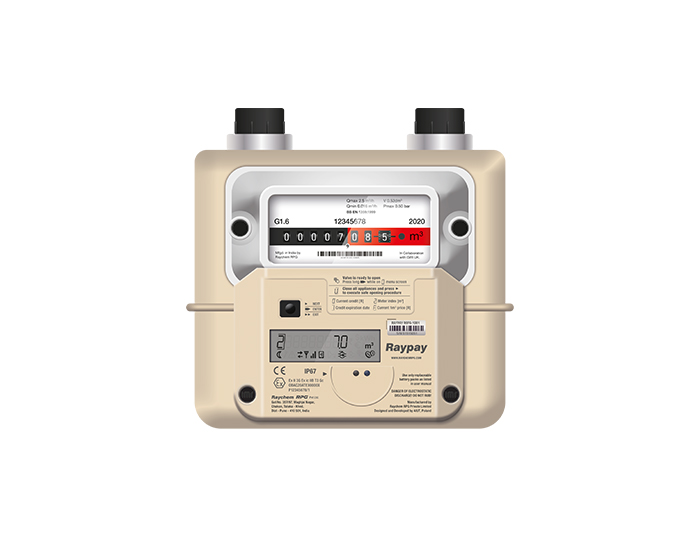

Communication technology allows remote reading of gas consumption
- Additional feature to existing G1.6 Diaphragm Gas Meter
- Equipped with internal valve; registers read-outs and transmits consumption data to back office server
- Controls valve remotely
- Reduces execution cost and promotes good payment behavior
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us ogd@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
Technical Information
| Data structures |
|---|
| 10 years of hourly consumption data |
| Daily readout: current device state, daily consumption |
| Tamper detection: lid opening, external magnet |
| Scheduled daily readouts |
| Server initiated query - command (valve cut-off) |
| Communication |
|---|
| LoRa, NB-IoT, 2G (GSM/GPRS) |
| Replaceable micro SIM card |
| Encrypted data transmission (AES-128) |
| Event triggered alarms |
| Ever-the-air configuration |
| Bluetooth Low Energy |
| Power supply |
|---|
| User replaceable long life battery (up to 10 years) depending on configuration and environment |
| 2x 17450 size MnO2 cell, pack type: RBAT P174-2 |
| Environment |
|---|
| Robust design, secured and sealed |
| Suitable for outdoor environment, IP67 |
| Operational temperature -25°C to +55°C |
| Ex zone (ATEX Zone 2 approved: II 3G Ex ic II B T3 Gc) |
| RAYPAY versions |
|---|
| RAYPAY R0F6 - RF Walk-by/ LoRaWAN, |
| RAYPAY RA06 - NB-IoT modem |
| RAYPAY RC06 - NB-IoT, 2G/SMS/GPRS modem |
| Compliance |
|---|
| ATEX Directive 2014/34/EU (Zone 2, gas group B) |
| Radio Equipment Directive (RED) 2014/53/EU – CE marked equipment |
| IECEx Certified Equipment |
| User friendly interface |
|---|
| LCD display with button for navigating menu: current meter value, customer ID, credit, payment mode, recommended amount and date of top-up |
| Prepaid functionality managed from Smart Gas application |
|---|
| BLE on-site operations |
| Quick access to your account and credit |
| Historical credit, balance and consumption data |
| List of transactions and their status |
| Fast and easy top-up |
| Recommended top-up value and date |
FAQ's
- Specifications
Q. Does smart meter available in both Postpaid & Prepaid module?
» Yes, Both postpaid & prepaid module available with us.
Q. Does tamper alarm facility available in smart gas meter?
» Yes, tamper alarm facility is available with smart gas meter.
Q. What are the communication protocol available in smart gas meter?
» RF, LoRa, GSM, NB-IoT, Sigfox
Q. Do we able to get the meter reading data on server on monthly basis?
» Yes
