Diaphragm Gas Meter measures natural & synthetic gases
Design in accordance with European Standard EN1359:2017
Measures gas consumption in the range of 0.016 to 2.5 m³/h
Suitable to measure natural gas, synthetic gases and mixtures
Optionally equipped with low frequency pulse transmitter or AMR module
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us ogd@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
| Parameter | Value |
|---|---|
| Construction | |
| Consists of three basic units | Mechanism assembly |
| Gas meter steel casing | |
| AMR ready index | |

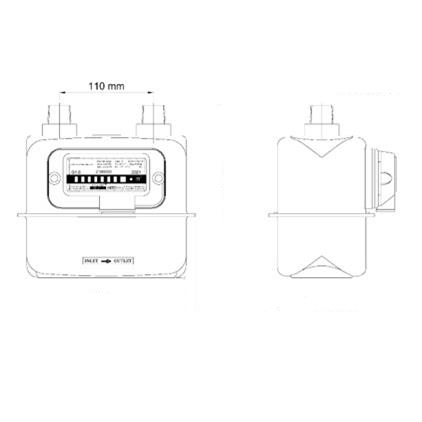

Dimensions
Installation ManualTechnical Information
| Parameter | Value |
|---|---|
| Model | Raychem RPG G1.6 |
| Nominal flow rate Qn | 1.6 m³/h |
| Minimal flow rate Qmin | 0.016 m³/h |
| Maximum flow rate Qmax | 2.50 m³/h |
| Transitional flowrate Qt | 0.25 m³/h |
| Cyclic volume – V (measured at 20°C) | 0.52 dm³ |
| Allowable indication errors limit during initial verification | |
| Qmin to 0.1Qmax – E | ±3% |
| 0.1Qmax to Qmax – E | ±1.5% |
| Ambient temperature – tm | -10 to +55°C |
| Gas temperature – tg | -10 to +55°C |
| Max. working pressure – Pmax | 0.50 bar |
| Max. pressure drop ∆ p at Qmax | 2 mbar |
| Index measuring range | 99999,999 m³ |
| Pulse value (pulse is optional) | 0.01m3 |
| Distance between connection bosses | 110 mm |
| Weight | ~1.7 kg |
| Family of gases | Gaseous fuels: Family 1,2 & 3 acc. to EN 437 |
| Electromagnetic class | E1 |
| Mechanical class | M1 |
| Accuracy class: | Class 1.5 |
| Possible connection standards | NPT, BS746, ISO and others on request |
FAQ's
- Specifications
Q. Does G1.6 mechanical gas meter is certified with EN 1359 standard?
» Our G1.6 mechanical gas meter is certified with the latest standard of EN 1359.
Q. Does G1.6 mechanical gas meter is available with both left & right entry?
» Yes, Our meter is available in both left & right entry.
Q. What is the accuracy of G1.6 mechanical gas meter?
» ± 1.5% - Qmax to Qt , ± 3% - Qt to Qmin
Q. What is the flow range of G1.6 mechanical gas meter?
» Qmax- 2.5 M³/Hr , Qmin – 0.016 M³/Hr
