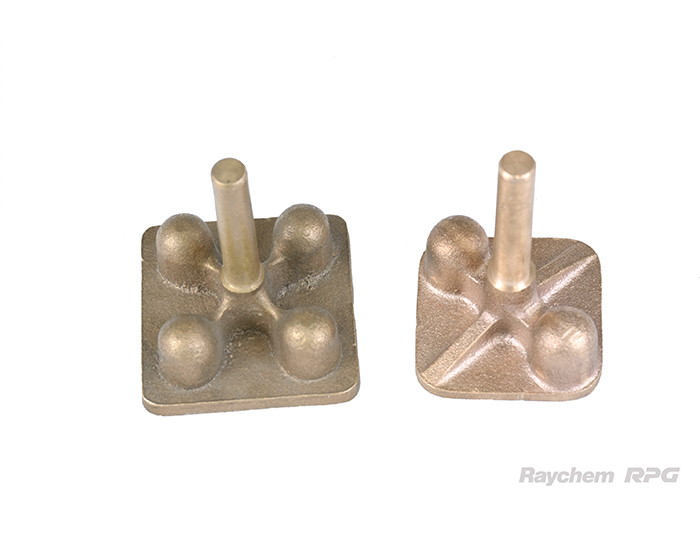

Direct connection to earth or down conductors or pre-welded tail for connection of internal rebar arrangement with mechanical clamps. Used for direct connection to earth conductors or down conductors. Earth points enable connection to internal rebar arrangement via mechanical clamps as per BS EN 1982:2009 & BS 7430
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
| Parameter | Value |
|---|---|
| Product Key : REPT-XX-YY-ZZZZ | XX : Earth Point no. (Refer above table for selection) |
| YY : Cu. Conductor C/S Area in sq. mm | |
| ZZZZ : Length of conductor in mm |
|
Earth Point No. (XX) |
Product Code |
Material |
Hole Size in mm |
|---|---|---|---|
|
1 HOLE |
|||
|
01 |
RBP – 01 |
Copper Alloy |
M8 |
|
02 |
RBP – 02 |
Copper Alloy |
M10 |
|
03 |
RBP – 03 |
Copper Alloy |
M12 |
|
04 |
RBP – 04 |
Copper Alloy |
M16 |
|
2 HOLE |
|||
|
05 |
RBP – 05 |
Copper Alloy |
M8 |
|
06 |
RBP – 06 |
Copper Alloy |
M10 |
|
4 HOLE |
|||
|
07 |
RBP – 07 |
Copper Alloy |
M8 |
|
08 |
RBP – 08 |
Copper Alloy |
M10 |
|
Earth points are as per BS EN 1982:2009 & BS 7430 |
|||
Technical Information
| Parameter |
|---|
| Manufactured from high quality copper alloy |
| Stranded conductor is connected to tail of earth point by means of exothermic welding |
Certifications
IEC certified
More info available on request
