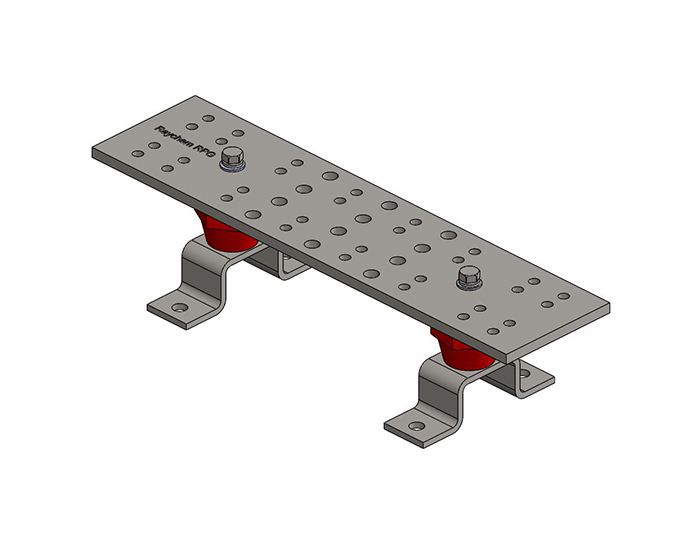

Used for bonding with sub distribution boards. Secondary Telecom earth bar is manufactured according to TIA 607C: 2015. The grounding earth bar provides a common grounding point within the telecommunications room and typically located on walls within a data room.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Part Code (Tinned) |
Part Code (Bare) |
Length in mm |
Width in mm |
Total Height in mm |
No. of Pairs of pairs |
|---|---|---|---|---|---|
|
RTGB-6T |
RTGB-6 |
305 |
50 |
107 |
6 |
|
RTGB-8T |
RTGB-8 |
407 |
50 |
107 |
8 |
|
RTGB-10T |
RTGB-10 |
458 |
50 |
107 |
10 |
|
RTGB-12T |
RTGB-12 |
508 |
50 |
107 |
12 |
|
RTGB-14T |
RTGB-14 |
610 |
50 |
107 |
14 |
Technical Information
| Parameter | Value |
|---|---|
| ETP Grade copper | 99.90% |
| Conductivity | 99.5% IACS% |
| Finish | Bare Copper / Tinned Copper |
Certifications
IEC certified
More info available on request
