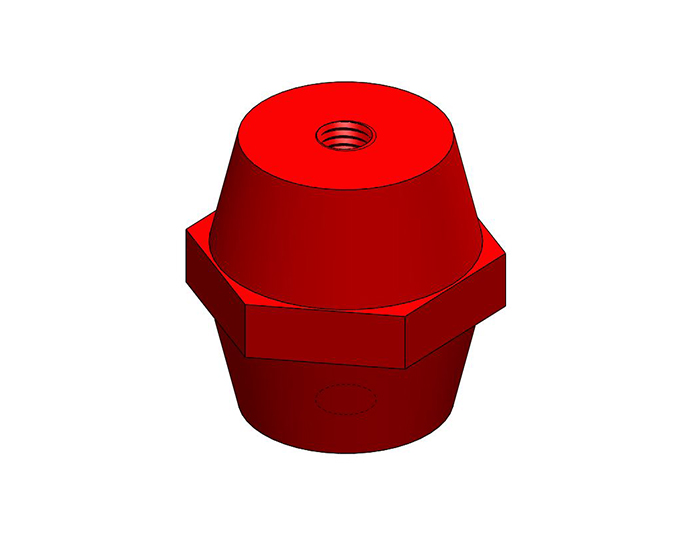

Combines high mechanical strength with high arc resistance and dielectric properties at elevated temperatures and humidity. Standoff Insulators combine high mechanical strength with high arc resistance and dielectric properties at elevated temperatures and humidity.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Product Code |
Dimensions |
|
|||
|---|---|---|---|---|---|
|
Rt |
Rb |
TL |
Height (H) |
Nominal Voltage |
|
|
Ø mm |
Ø mm |
Ø mm |
mm |
(AC / DC) |
|
|
RH 1045 (M10) |
40 |
32 |
12 |
45 |
1000 / 1200 |
|
RH 1050 (M10) |
46 |
35.5 |
17 |
50 |
1200 / 1500 |
Technical Information
| Parameter |
|---|
| Raychem RPG manufactures Insulator from DMC (Dough Moulding Compound) |
| Halogen free resistant |
| Insert :Brass & Mild Steel |
