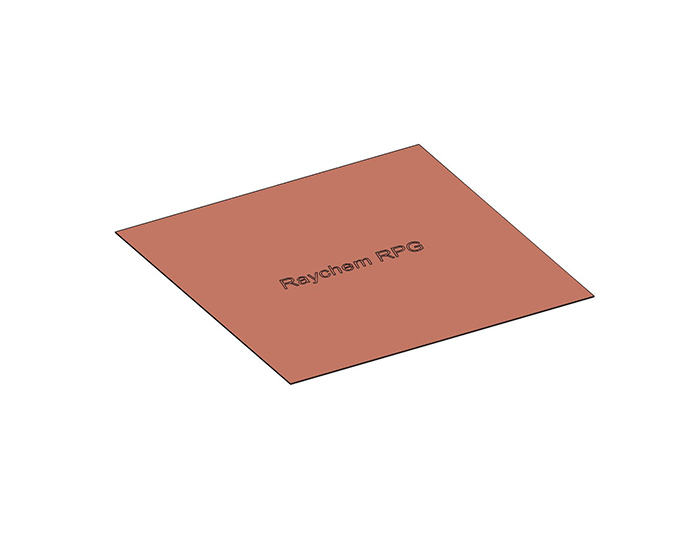

Suitable for corrosive soil conditions like soil with salt and moisture. Solid Earth Plate is ideally suited for soil conditions which are very corrosive due to high salt and moisture content. Copper earth plates are used as grounding electrodes in places where deep driving of grounding rod is not possible.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Part No |
Plate Size |
Length (mm) |
Width (mm) |
Thickness (mm) |
|---|---|---|---|---|
|
REP-01 |
500 X 500 X 1.5 |
500 |
500 |
1.5 |
|
REP-02 |
500 X 500 X 3 |
500 |
500 |
3 |
|
REP-03 |
600 X 600 X 1.5 |
600 |
600 |
1.5 |
|
REP-04 |
600 X 600 X 3 |
600 |
600 |
3 |
|
REP-05 |
900 X 900 X 1.5 |
900 |
900 |
1.5 |
|
REP-06 |
900 X 900 X 3 |
900 |
900 |
3 |
|
REP-07 |
1000 X 1000 X 1.5 |
1000 |
1000 |
1.5 |
|
REP-08 |
1000 X 1000 X 3 |
1000 |
1000 |
3 |
|
Raychem RPG Manufacturers Copper Earth Plates as per IEC 62561-2, BS EN 50164-2 & BS 7430. |
||||
Technical Information
| Parameter |
|---|
| Grade of Copper : ETP - Cu |
| Copper Composition : 99.9% |
| Hardness : 75-90 HV (Half Hard) |
| Conductivity : 99.5 IACS % |
Certifications
IEC certified
More info available on request
