Load rated to 3500 Kgs. It facilitates periodic inspection of connections for corrosion and regular maintenance to ensure safety of personnel and equipment from earth fault currents and the high currents injected into earth provided by a lightning protection system.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|

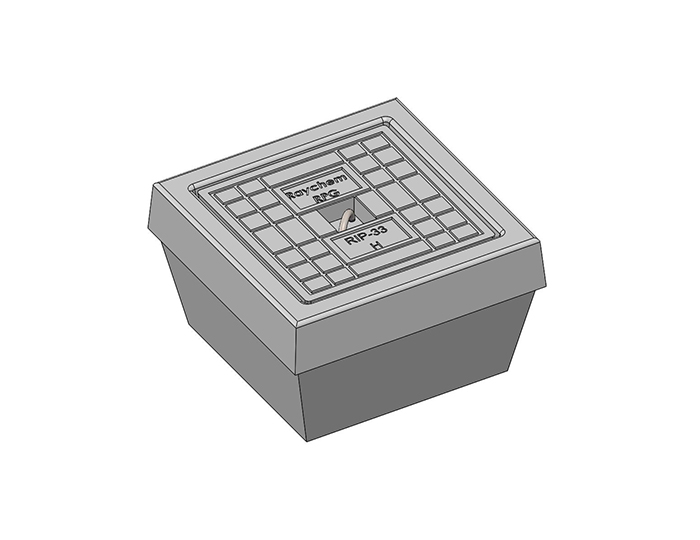

Concrete Earth Inspection Pit |
|||
|---|---|---|---|
|
S.No. |
Product Code |
Dimensions in mm |
Rated Load |
|
1 |
RIP 33 |
325 (L) x 325 (W) x 190 (D) |
3.5 ton or 3500kg |
|
Raychem RPG Manufacturers Concrete Earth Inspection Pit as per IEC 62561-5:2017, BS EN 50164- 5:2009. |
|||
|
Inspection Housing Copper Earth Bar |
||||
|---|---|---|---|---|
|
S.No. |
Product Code |
Dimensions in mm |
No. of Holes |
Material |
|
1 |
RIH-01 |
290 (L) x 30 (W) x 6 (D) |
5 |
99.9% ETP Grade |
|
2 |
RIH-02 |
290 (L) x 30 (W) x 6 (D) |
7 |
99.9% ETP Grade |
Technical Information
| Parameter |
|---|
| Load rated to 3500kgand suitable for most types of earthing and lightning protection installations. |
| Provided with a central lifting hook of Stainless Steel for Industrial applications |
| Designed to accept a diagonal earth bar with 5 or 7 terminations (RIH 01 & RIH 02) |
Certifications
IEC certified
More info available on request
