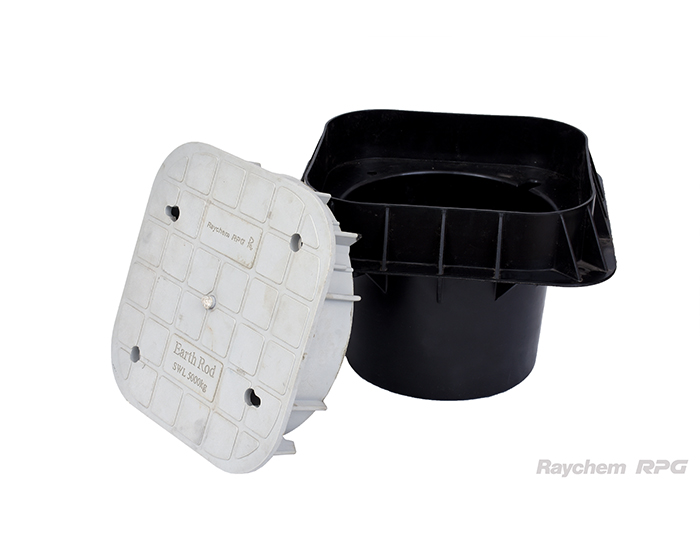

Load rated to 5000 Kgs. Manufactured from high-performance, UV stable and chemically resistant polymer with either polymer or concrete lid to suit the application.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
|||
|---|---|---|---|
|
S.No. |
Product Code |
Dimensions in mm |
Rated Load |
|
1 |
REP-33 |
200 (Dia.) x 156 (Depth) |
500kG or 5 ton |
|
Raychem RPG Manufacturers Light Weight Earth Inspection Pit as per IEC 62561-5:2012, BS EN 50164-5:2009. |
|||
|
Inspection Housing Copper Earth Bar |
||||
|---|---|---|---|---|
|
S.No. |
Product Code |
Dimensions in mm |
No.of Holes |
Material |
|
1 |
RIH-01 |
240 (L) x 30 (W) x 6 (D) |
5 |
99.9% ETP Grade |
|
2 |
RIH-02 |
240 (L) x 30 (W) x 6 (D) |
7 |
99.9% ETP Grade |
Technical Information
| Parameter |
|---|
| Load rated to 5000kg and suitable for most types of earthing and lightning protection installations. |
| Manufactured with high-performance polymer, lightweight pit is UV stable and chemically resistant. |
Certifications
UL Listed
More info available on request
IEC certified
More info available on request
