Bar to Bar
Bar to Bar FullScreen
  • Features
  • Help & Support

Exothermic welding process is a simple, efficient method of permanently bonding copper to copper or copper to steel. Exothermic connection provides permanent conductivity over the complete section due to molecular bonding between metal surfaces. Exothermic welded joint carries more tensile strength than mechanical connections.

  • Make in India

Please connect with us

Specifications

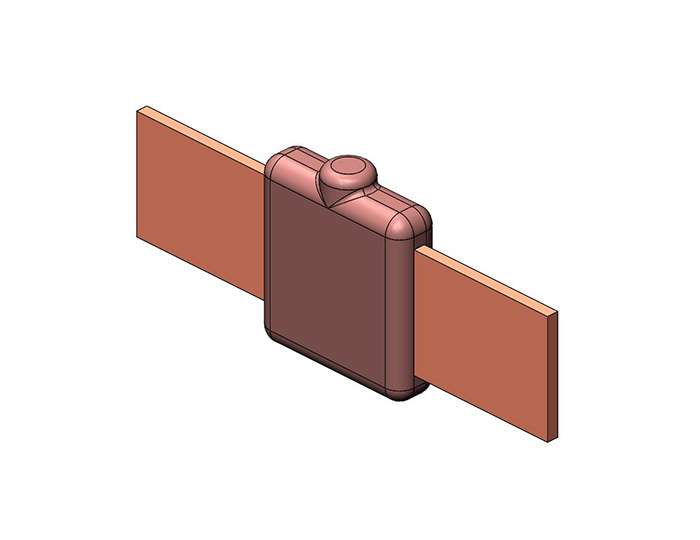

Vertical Straight Tape Joint : RBB1

A Weld & Ignition Powder Mould
mm x mm
20 x 2 RWP 045 RBB1-R4-202
20 x 3 RWP 045 RBB1-R4-203
20 x 5 RWP 065 RBB1-R4-205
25 x 2 RWP 065 RBB1-R4-252
25 x 3 RWP 065 RBB1-R4-253
25 x 4 RWP 090 RBB1-R4-254
25 x 6 RWP 150 RBB1-R4-256
30 x 2 RWP 065 RBB1-R4-302
30 x 3 RWP 090 RBB1-R4-303
30 x 4 RWP 115 RBB1-R4-304
30 x 5 RWP 115 RBB1-R4-305
31 x 3 RWP 065 RBB1-R4-313
31 x 6 RWP 115 RBB1-R4-316
38 x 3 RWP 150 RBB1-R4-383
38 x 5 RWP 150 RBB1-R4-385
38 x 6 RWP 200 RBB1-R4-386
40 x 3 RWP 115 RBB1-R4-403
40 x 4 RWP 150 RBB1-R4-404
40 x 5 RWP 150 RBB1-R4-405
40 x 6 RWP 200 RBB1-R4-406
40 x 10 RWP 250 RBB1-R4-4010
50 x 3 RWP 150 RBB1-R4-503
50 x 4 RWP 200 RBB1-R4-504
50 x 5 RWP 200 RBB1-R4-505
50 x 6 RWP 250 RBB1-R4-506
50 x 8 2 x RWP 150 RBB1-R5-508
50 x 10 2 x RWP 200 RBB1-R5-5010
60 x 5 RWP 250 RBB1-R4-605
60 x 6 RWP 250 RBB1-R4-606
60 x 8 2 x RWP200 RBB1-R5-608
60 x 10 2 x RWP 250 RBB1-R5-6010
80 x 5 2 x RWP 200 RBB1-R5-805
80 x 6 2 x RWP 200 RBB1-R5-806
80 x 8 2 x RWP 250 RBB1-R5-808
80 x 8 2 x RWP 250 RBB1-R5-808
80 x 10 3 x RWP 200 RBB1-R5-8010
100 x 5 2 x RWP 250 RBB1-R5-1005
100 x 10 3 x RWP 250 RBB1-R5-10010
Vertical T Shape Tape Joint : RBB
A B Weld & Ignition Powder Mould
mm x mm mm x mm
20 x 2 20 x 2 RWP 045 RBB3-R4-202
20 x 3 20 x 3 RWP 065 RBB3-R4-203
20 x 5 20 x 5 RWP 065 RBB3-R4-205
25 x 2 25 x 2 RWP 065 RBB3-R4-252
25 x 3 25 x 3 RWP 065 RBB3-R4-253
25 x 4 25 x 4 RWP 090 RBB3-R4-254
25 x 6 25 x 6 RWP 150 RBB3-R4-256
30 x 2 30 x 2 RWP 065 RBB3-R4-302
30 x 3 30 x 3 RWP 090 RBB3-R4-303
30 x 4 30 x 4 RWP 115 RBB3-R4-304
30 x 5 30 x 5 RWP 115 RBB3-R4-305
31 x 3 31 x 3 RWP 115 RBB3-R4-313
31 x 6 31 x 6 RWP 200 RBB3-R4-316
38 x 3 38 x 3 RWP 115 RBB3-R4-383
38 x 5 38 x 5 RWP 150 RBB3-R4-385
38 x 6 38 x 6 RWP 200 RBB3-R4-386
40 x 3 40 x 3 RWP 115 RBB3-R4-403
40 x 4 40 x 4 RWP 150 RBB3-R4-404
40 x 5 40 x 5 RWP 150 RBB3-R4-405
40 x 6 40 x 6 RWP 200 RBB3-R4-406
40 x 10 40 x 10 2 X RWP 150 RBB3-R5-410
50 x 3 50 x 3 RWP 200 RBB3-R4-503
50 x 4 50 x 4 RWP 200 RBB3-R4-504
50 x 5 50 x 5 RWP 200 RBB3-R4-505
50 x 6 50 x 6 RWP 250 RBB3-R4-506
50 x 8 50 x 8 2 X RWP 150 RBB3-R5-508
50 x 10 50 x 10 2 X RWP 200 RBB3-R5-5010
60 x 5 60 x 5 2 X RWP 150 RBB3-R5-605
60 x 6 60 x 6 2 X RWP 150 RBB3-R5-606
60 x 8 60 x 8 2 X RWP 200 RBB3-R5-608
60 x 10 60 x 10 2 X RWP 250 RBB3-R5-6010
80 x 5 80 x 5 2 X RWP 200 RBB3-R5-805
80 x 6 80 x 6 2 X RWP 200 RBB3-R5-806
80 x 8 80 x 8 2 X RWP 250 RBB3-R5-808
80 x 10 80 x 10 3 X RWP200 RBB3-R5-8010

Horizontal Straight Tape Joint : RBB7

A Weld & Ignition Powder Mould
mm x mm
20 x 2 RWP 045 RBB1-R4-202
20 x 3 RWP 045 RBB7-R4-203
20 x 4 RWP 065 RBB7-R4-204
20 x 5 RWP 090 RBB7-R4-205
25 x 2 RWP 045 RBB7-R4-252
25 x 3 RWP 065 RBB7-R4-253
25 x 4 RWP 090 RBB7-R4-254
25 x 5 RWP 115 RBB7-R4-255
25 x 6 RWP 115 RBB7-R4-256
30 x 2 RWP 065 RBB7-R4-302
30 x 3 RWP 065 RBB7-R4-303
30 x 4 RWP 090 RBB7-R4-304
30 x 5 RWP 115 RBB7-R4-305
31 x 3 RWP 065 RBB7-R4-313
31 x 6 RWP 150 RBB7-R4-316
38 x 3 RWP 090 RBB7-R4-383
38 x 5 RWP 150 RBB7-R4-385
38 x 6 RWP 200 RBB7-R4-386
40 x 3 RWP 090 RBB7-R4-403
40 x 4 RWP 115 RBB7-R4-404
40 x 5 RWP 150 RBB7-R4-405
40 x 6 RWP 200 RBB7-R4-406
40 x 10 2 X RWP 150 RBB7-R5-4010
50 x 3 RWP 150 RBB7-R5-503
50 x 4 RWP 200 RBB7-R5-504
50 x 5 RWP 200 RBB7-R5-505
50 x 6 RWP 250 RBB7-R5-506
50 x 8 2 X RWP 150 RBB7-R5-508
50 x 10 2 X RWP 200 RBB7-R5-5010
60 x 5 2 X RWP 150 RBB7-R5-605
60 x 6 2 X RWP 150 RBB7-R5-606
60 x 8 2 X RWP 200 RBB7-R5-608
60 x 10 2 X RWP 250 RBB7-R5-6010
80 x 5 2 X RWP 200 RBB7-R5-805
80 x 10 3 X RWP 200 RBB7-R5-8010

Horizontal T Shape Tape Joint : RBB14

A B Weld & Ignition Powder Mould
mm x mm mm x mm
20 x 2 20 x 2 RWP 045 RBB14-R4-202
20 x 3 20 x 3 RWP 045 RBB14-R4-203
20 x 4 20 x 4 RWP 065 RBB14-R4-204
20 x 5 20 x 5 RWP 090 RBB14-R4-205
25 x 2 25 x 2 RWP 045 RBB14-R4-252
25 x 3 25 x 3 RWP 065 RBB14-R4-253
25 x 4 25 x 4 RWP 090 RBB14-R4-254
25 x 5 25 x 5 RWP 090 RBB14-R4-255
25 x 6 25 x 6 RWP 115 RBB14-R4-256
25 x 6 25 x 3 RWP 115 RBB14-R4-256/253
30 x 2 30 x 2 RWP 065 RBB14-R4-302
30 x 3 30 x 3 RWP 065 RBB14-R4-303
30 x 4 30 x 4 RWP 090 RBB14-R4-304
30 x 5 30 x 5 RWP 115 RBB14-R4-305
30 x 6 50 x 6 RWP 250 RBB14-R4-305/306
31 x 3 31 x 3 RWP 090 RBB14-R4-313
31 x 6 31 x 6 RWP 150 RBB14-R4-316
38 x 3 38 x 3 RWP 090 RBB14-R4-383
38 x 5 38 x 5 RWP 150 RBB14-R4-385
38 x 6 38 x 6 RWP 200 RBB14-R4-386
40 x 3 40 x 3 RWP 090 RBB14-R4-403
40 x 4 40 x 4 RWP 115 RBB14-R4-404
40 x 5 40 x 5 RWP 150 RBB14-R4-405
40 x 6 40 x 6 RWP 200 RBB14-R4-406
40 x 10 50 x 6 2 X RWP 150 RBB14-R5-4010/506
40 x 10 40 x 10 2 X RWP 150 RBB14-R5-4010
50 x 3 50 x 3 RWP 150 RBB14-R5-503
50 x 4 50 x 4 RWP 200 RBB14-R5-504
50 x 5 50 x 5 RWP 200 RBB14-R5-505
50 x 6 30 x 5 RWP 200 RBB14-R5-506/305
50 x 6 50 x 6 RWP 250 RBB14-R5-506
50 x 6 60 x 10 2 X RWP 150 RBB14-R5-506/6010
50 x 8 50 x 8 2 X RWP 150 RBB14-R5-508
50 x10 50 x 10 2 X RWP 200 RBB14-R5-5010
60 x 5 60 x 5 2 X RWP 150 RBB14-R5-605
60 x 6 60 x 6 2 X RWP 150 RBB14-R5-606
60 x 8 60 x 8 2 X RWP 200 RBB14-R5-608
60 x 10 60 x 10 2 X RWP 250 RBB14-R5-6010
80 x 5 80 x 5 2 X RWP 200 RBB14-R5-805
80 x 10 80 x 10 3 X RWP 200 RBB14-R5-8010

Horizontal Cross / + Shape Tape Joint : RBB41

A B Weld & Ignition Powder Mould
mm x mm mm x mm
20 x 3 20 x 3 RWP 045 RBB41-R4-202
25 x 3 25 x 3 RWP 065 RBB41-R4-253
25 x 4 25 x 4 RWP 090 RBB41-R4-254
25 x 6 25 x 6 RWP 115 RBB41-R4-256
30 x 2 30 x 2 RWP 090 RBB41-R4-302
30 x 3 30 x 3 RWP 115 RBB41-R4-303
30 x 4 30 x 4 RWP 115 RBB41-R4-304
30 x 5 30 x 5 RWP 115 RBB41-R4-305
31 x 3 31 x 3 RWP 115 RBB41-R4-313
31 x 6 31 x 6 RWP 115 RBB41-R4-316
38 x 3 38 x 3 RWP 150 RBB41-R4-383
38 x 5 38 x 5 RWP 150 RBB41-R4-385
38 x 6 38 x 6 RWP 200 RBB41-R4-386
40 x 3 40 x 3 RWP 200 RBB41-R4-403
40 x 4 40 x 4 RWP 200 RBB41-R4-404
40 x 5 40 x 5 RWP 200 RBB41-R4-405
40 x 6 40 x 6 RWP 200 RBB41-R4-406
50 x 3 50 x 3 RWP 200 RBB41-R5-503
50 x 4 50 x 4 RWP 200 RBB41-R5-504
50 x 5 50 x 5 RWP 200 RBB41-R5-505
50 x 6 50 x 6 RWP 200 RBB41-R5-506
50 x 8 50 x 8 RWP 250 RBB41-R5-508

Technical Information

SN. Joint Type
1 Vertical Straight Tape Joint : RBB1
2 Vertical T Shape Tape Joint : RBB3
3 Horizontal Straight Tape Joint : RBB7
4 Horizontal T Shape Tape Joint : RBB14
5 Horizontal Cross / + Shape Tape Joint : RBB41
