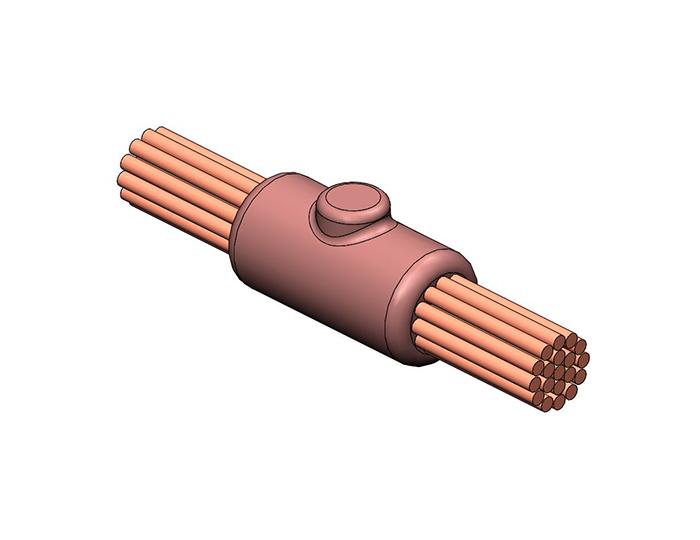

RCC1
A | B | Weld & Ignition Powder | Mould |
---|---|---|---|
mm² | mm² | ||
10 | 10 | RWP032 | RCC1-R4-1010 |
16 | 16 | RWP032 | RCC1-R4-16 |
25 | 25 | RWP032 | RCC1-R4-25 |
35 | 35 | RWP032 | RCC1-R4-35 |
50 | 50 | RWP045 | RCC1-R4-50 |
50 | 70 | RWP065 | RCC1-R4-5070 |
50 | 95 | RWP090 | RCC1-R4-5095 |
8mmØ | 8mmØ | RWP045 | RCC1-R4-8SC |
70 | 70 | RWP065 | RCC1-R4-70 |
70 | 95 | RWP090 | RCC1-R4-7095 |
70 | 120 | RWP115 | RCC1-R4-70120 |
10mmØ | 10mmØ | RWP065 | RCC1-R4-10SC |
10mmØ | 10 | RWP065 | RCC1-R4-10SC10 |
10mmØ | 16 | RWP065 | RCC1-R4-10SC16 |
10mmØ | 25 | RWP065 | RCC1-R4-10SC25 |
10mmØ | 35 | RWP065 | RCC1-R4-10SC35 |
10mmØ | 50 | RWP065 | RCC1-R4-10SC50 |
10mmØ | 70 | RWP065 | RCC1-R4-10SC70 |
10mmØ | 95 | RWP090 | RCC1-R4-10SC95 |
10mmØ | 120 | RWP115 | RCC1-R4-10SC120 |
10mmØ | 150 | RWP115 | RCC1-R4-10SC150 |
10mmØ | 185 | RWP150 | RCC1-R4-10SC185 |
10mmØ | 240 | RWP200 | RCC1-R4-10SC240 |
10mmØ | 300 | RWP250 | RCC1-R4-10SC300 |
10mmØ | 400 | 2xRWP150 | RCC1-R5-10SC400 |
10mmØ | 500 | 2XRWP200 | RCC1-R5-10SC500 |
95 | 95 | RWP090 | RCC1-R4-95 |
95 | 120 | RWP115 | RCC1-R4-95120 |
120 | 120 | RWP115 | RCC1-R4-120 |
150 | 150 | RWP115 | RCC1-R4-150 |
185 | 185 | RWP150 | RCC1-R4-185 |
240 | 240 | RWP200 | RCC1-R4-240 |
300 | 300 | RWP250 | RCC1-R4-300 |
400 | 400 | 2xRWP150 | RCC1-R5-400 |
500 | 500 | 2XRWP200 | RCC1-R5-500500 |
A | B | Weld & Ignition Powder | Mould |
---|---|---|---|
mm² | mm² | ||
10 | 10 | RWP 032 | RCC2-R4-1010 |
16 | 16 | RWP 045 | RCC2-R4-1616 |
25 | 10 | RWP 045 | RCC2-R4-2510 |
25 | 16 | RWP 045 | RCC2-R4-2516 |
25 | 25 | RWP 045 | RCC2-R4-2525 |
30 | 16 | RWP 045 | RCC2-R4-3016 |
30 | 25 | RWP 045 | RCC2-R4-3025 |
30 | 30 | RWP 045 | RCC2-R4-3030 |
35 | 16 | RWP 045 | RCC2-R4-3516 |
35 | 30 | RWP 045 | RCC2-R4-3530 |
35 | 35 | RWP 045 | RCC2-R4-3535 |
35 | 25 | RWP 045 | RCC2-R4-3525 |
8 mm Ø | 8 mm Ø | RWP 065 | RCC2-R4-88SC |
50 | 50 | RWP 090 | RCC2-R4-5050 |
50 | 35 | RWP 065 | RCC2-R4-5035 |
50 | 25 | RWP 065 | RCC2-R4-5025 |
50 | 16 | RWP 045 | RCC2-R4-5016 |
10 mm Ø | 10 mm Ø | RWP 090 | RCC2-R4-1010SC |
70 | 70 | RWP 090 | RCC2-R4-7070 |
70 | 50 | RWP 090 | RCC2-R4-7050 |
70 | 35 | RWP 065 | RCC2-R4-7035 |
70 | 30 | RWP 065 | RCC2-R4-7030 |
70 | 25 | RWP 065 | RCC2-R4-7025 |
70 | 16 | RWP 065 | RCC2-R4-7016 |
70 | 6 | RWP 045 | RCC2-R4-706 |
95 | 95 | RWP 115 | RCC2-R4-9595 |
95 | 70 | RWP 090 | RCC2-R4-9570 |
95 | 50 | RWP 090 | RCC2-R4-9550 |
95 | 35 | RWP 090 | RCC2-R4-9535 |
95 | 30 | RWP 090 | RCC2-R4-9530 |
95 | 25 | RWP 090 | RCC2-R4-9525 |
95 | 16 | RWP 090 | RCC2-R4-9516 |
120 | 300 | RWP 200 | RCC2-R4-120300 |
120 | 120 | RWP 150 | RCC2-R4-120120 |
120 | 95 | RWP 150 | RCC2-R4-12095 |
120 | 70 | RWP 090 | RCC2-R4-12070 |
120 | 50 | RWP 090 | RCC2-R4-12050 |
120 | 35 | RWP 090 | RCC2-R4-12035 |
120 | 25 | RWP 090 | RCC2-R4-12025 |
120 | 30 | RWP 090 | RCC2-R4-12030 |
120 | 16 | RWP 090 | RCC2-R4-12016 |
150 | 150 | RWP 200 | RCC2-R4-150150 |
150 | 120 | RWP 150 | RCC2-R4-150120 |
150 | 95 | RWP 150 | RCC2-R4-15095 |
150 | 70 | RWP 090 | RCC2-R4-15070 |
150 | 50 | RWP 090 | RCC2-R4-15050 |
150 | 35 | RWP 090 | RCC2-R4-15035 |
150 | 30 | RWP 090 | RCC2-R4-15030 |
150 | 25 | RWP 090 | RCC2-R4-15025 |
150 | 16 | RWP 090 | RCC2-R4-15016 |
185 | 185 | RWP 200 | RCC2-R4-185185 |
185 | 150 | RWP 200 | RCC2-R4-185150 |
185 | 120 | RWP 200 | RCC2-R4-185120 |
185 | 95 | RWP 150 | RCC2-R4-18595 |
185 | 70 | RWP 150 | RCC2-R4-18570 |
240 | 400 | 2xRWP 200 | RCC2-R4-240400 |
240 | 240 | 2xRWP 150 | RCC2-R5-240240 |
240 | 185 | RWP 200 | RCC2-R4-240185 |
240 | 150 | RWP 200 | RCC2-R4-240150 |
240 | 120 | RWP 200 | RCC2-R4-240120 |
240 | 95 | RWP 150 | RCC2-R4-24095 |
240 | 70 | RWP 115 | RCC2-R4-24070 |
240 | 50 | RWP 090 | RCC2-R4-24050 |
240 | 35 | RWP 090 | RCC2-R4-24035 |
240 | 25 | RWP 090 | RCC2-R4-24025 |
240 | 16 | RWP 090 | RCC2-R4-24016 |
300 | 300 | 2xRWP 200 | RCC2-R5-300300 |
300 | 240 | 2xRWP 200 | RCC2-R5-300240 |
300 | 185 | RWP 250 | RCC2-R4-300185 |
300 | 150 | RWP 200 | RCC2-R4-300150 |
300 | 120 | RWP 150 | RCC2-R4-300120 |
300 | 95 | RWP 200 | RCC2-R4-30095 |
300 | 70 | RWP 200 | RCC2-R4-30070 |
300 | 50 | RWP 115 | RCC2-R4-30050 |
300 | 35 | RWP 115 | RCC2-R4-30035 |
300 | 25 | RWP 115 | RCC2-R4-30025 |
300 | 16 | RWP 090 | RCC2-R4-30016 |
400 | 400 | 2xRWP 250 | RCC2-R4-400400 |
400 | 300 | 2xRWP 200 | RCC2-R4-400300 |
400 | 95 | RWP 250 | RCC2-R4-40095 |
A | B | Weld & Ignition Powder | Mould |
---|---|---|---|
mm² | mm² | ||
10 | 10 | RWP045 | RCC4-R4-1010 |
16 | 16 | RWP045 | RCC4-R4-1616 |
25 | 25 | RWP045 | RCC4-R4-2525 |
35 | 35 | RWP065 | RCC4-R4-3535 |
35 | 25 | RWP065 | RCC4-R4-3525 |
8mmØ | 8mmØ | RWP090 | RCC4-R4-88SC |
50 | 50 | RWP090 | RCC4-R4-5050 |
50 | 35 | RWP090 | RCC4-R4-5035 |
50 | 25 | RWP090 | RCC4-R4-5025 |
10mmØ | 10mmØ | RWP115 | RCC4-R4-1010SC |
70 | 70 | RWP115 | RCC4-R4-7070 |
70 | 50 | RWP115 | RCC4-R4-7050 |
70 | 35 | RWP115 | RCC4-R4-7035 |
70 | 25 | RWP115 | RCC4-R4-7025 |
95 | 95 | RWP150 | RCC4-R4-9595 |
95 | 70 | RWP150 | RCC4-R4-9570 |
95 | 50 | RWP115 | RCC4-R4-9550 |
95 | 35 | RWP115 | RCC4-R4-9535 |
120 | 120 | RWP200 | RCC4-R4-120120 |
120 | 95 | RWP200 | RCC4-R4-12095 |
120 | 70 | RWP150 | RCC4-R4-12070 |
120 | 50 | RWP150 | RCC4-R4-12050 |
120 | 35 | RWP115 | RCC4-R4-12035 |
120 | 25 | RWP150 | RCC4-R4-12025 |
150 | 150 | RWP250 | RCC4-R4-150150 |
150 | 120 | RWP250 | RCC4-R4-150120 |
150 | 95 | RWP200 | RCC4-R4-15095 |
150 | 70 | RWP150 | RCC4-R4-15070 |
150 | 50 | RWP150 | RCC4-R4-15050 |
185 | 185 | 2X RWP150 | RCC4-R5-185185 |
185 | 150 | RWP250 | RCC4-R4-185150 |
185 | 120 | RWP250 | RCC4-R4-185120 |
185 | 95 | RWP200 | RCC4-R4-18595 |
185 | 70 | RWP200 | RCC4-R4-18570 |
240 | 240 | 2X RWP250 | RCC4-R5-240240 |
240 | 185 | 2X RWP200 | RCC4-R5-240185 |
240 | 150 | 2X RWP200 | RCC4-R5-240150 |
240 | 120 | 2X RWP150 | RCC4-R5-240120 |
240 | 95 | 2X RWP150 | RCC4-R5-24095 |
300 | 300 | 3X RWP200 | RCC4-R5-300300 |
300 | 240 | 3X RWP200 | RCC4-R5-300240 |
300 | 185 | 2X RWP250 | RCC4-R5-300185 |
300 | 150 | 2X RWP250 | RCC4-R5-300150 |
300 | 120 | 2X RWP200 | RCC4-R5-300120 |
A | B | Weld & Ignition Powder | Mould |
---|---|---|---|
mm² | mm² | ||
10 | 10 | RWP32 | RCC6-R4-1010 |
16 | 16 | RWP32 | RCC6-R4-1616 |
25 | 25 | RWP32 | RCC6-R4-2525 |
35 | 35 | RWP65 | RCC6-R4-3535 |
35 | 25 | RWP45 | RCC6-R4-3525 |
50 | 50 | RWP90 | RCC6-R4-5050 |
50 | 35 | RWP65 | RCC6-R4-5035 |
50 | 25 | RWP65 | RCC6-R4-5025 |
70 | 70 | RWP115 | RCC6-R4-7070 |
70 | 50 | RWP115 | RCC6-R4-7050 |
70 | 35 | RWP90 | RCC6-R4-7035 |
70 | 25 | RWP90 | RCC6-R4-7025 |
95 | 95 | RWP150 | RCC6-R4-9595 |
95 | 70 | RWP150 | RCC6-R4-9570 |
95 | 50 | RWP115 | RCC6-R4-9550 |
95 | 35 | RWP115 | RCC6-R4-9535 |
120 | 120 | RWP200 | RCC6-R4-120120 |
120 | 95 | RWP200 | RCC6-R4-12095 |
120 | 70 | RWP150 | RCC6-R4-12070 |
120 | 50 | RWP115 | RCC6-R4-12050 |
150 | 150 | RWP250 | RCC6-R4-150150 |
150 | 120 | RWP250 | RCC6-R4-150120 |
150 | 95 | RWP200 | RCC6-R4-12095 |
150 | 70 | RWP150 | RCC6-R4-15070 |
185 | 185 | RWP250 | RCC6-R4-185185 |
185 | 150 | RWP250 | RCC6-R4-185150 |
185 | 120 | RWP200 | RCC6-R4-185120 |
185 | 95 | RWP150 | RCC6-R4-18595 |
240 | 240 | 2 X RWP150 | RCC6-R5-240240 |
240 | 185 | RWP250 | RCC6-R4-240185 |
240 | 150 | RWP250 | RCC6-R4-240150 |
240 | 120 | RWP200 | RCC6-R4-240120 |
A | B | Weld & Ignition Powder | Mould |
---|---|---|---|
mm² | mm² | ||
10 | 10 | RWP045 | RCC7-R4-1010 |
16 | 16 | RWP045 | RCC7-R4-1616 |
25 | 25 | RWP045 | RCC7-R4-2525 |
35 | 35 | RWP065 | RCC7-R4-3535 |
35 | 30 | RWP065 | RCC7-R4-3530 |
35 | 25 | RWP065 | RCC7-R4-3525 |
8 mm Ø | 8 mm Ø | RWP090 | RCC7-R4-88SC |
50 | 50 | RWP090 | RCC7-R4-5050 |
50 | 35 | RWP090 | RCC7-R4-5035 |
50 | 25 | RWP065 | RCC7-R4-5025 |
10 mm Ø | 10 mm Ø | RWP115 | RCC7-R4-1010SC |
70 | 70 | RWP115 | RCC7-R4-7070 |
70 | 50 | RWP115 | RCC7-R4-7050 |
70 | 35 | RWP090 | RCC7-R4-7035 |
70 | 30 | RWP090 | RCC7-R4-7030 |
70 | 25 | RWP090 | RCC7-R4-7025 |
95 | 95 | RWP150 | RCC7-R4-9595 |
95 | 70 | RWP115 | RCC7-R4-9570 |
95 | 50 | RWP115 | RCC7-R4-9550 |
95 | 35 | RWP115 | RCC7-R4-9535 |
120 | 120 | RWP200 | RCC7-R4-120120 |
120 | 95 | RWP200 | RCC7-R4-12095 |
120 | 70 | RWP150 | RCC7-R4-12070 |
120 | 50 | RWP150 | RCC7-R4-12050 |
120 | 35 | RWP150 | RCC7-R4-12035 |
150 | 150 | 2 X RWP150 | RCC7-R5-150150 |
150 | 120 | RWP250 | RCC7-R4-150120 |
150 | 95 | RWP200 | RCC7-R4-15095 |
150 | 70 | RWP150 | RCC7-R4-15070 |
150 | 50 | RWP150 | RCC7-R4-15050 |
185 | 185 | 2 X RWP150 | RCC7-R5-185185 |
185 | 150 | 2 X RWP150 | RCC7-R5-185150 |
185 | 120 | RWP250 | RCC7-R4-185120 |
185 | 95 | RWP200 | RCC7-R4-18595 |
185 | 70 | RWP200 | RCC7-R4-18570 |
240 | 240 | 2 X RWP200 | RCC7-R5-240240 |
240 | 185 | 2 X RWP150 | RCC7-R5-240185 |
240 | 150 | 2 X RWP150 | RCC7-R5-240150 |
240 | 120 | RWP250 | RCC7-R4-240120 |
240 | 95 | RWP250 | RCC7-R4-24095 |
300 | 300 | 2 X RWP250 | RCC7-R5-300300 |
300 | 240 | 2 X RWP250 | RCC7-R5-300240 |
300 | 185 | 2 X RWP200 | RCC7-R5-300185 |
300 | 150 | 2 X RWP150 | RCC7-R5-300150 |
300 | 120 | 2 X RWP150 | RCC7-R5-300120 |
A | B | Weld & Ignition Powder | Mould |
---|---|---|---|
mm² | mm² | ||
10 | 10 | RWP065 | RCC11-R4-1010 |
16 | 16 | RWP065 | RCC11-R4-1616 |
25 | 25 | RWP065 | RCC11-R4-2525 |
35 | 25 | RWP090 | RCC11-R4-3525 |
35 | 35 | RWP090 | RCC11-R4-3535 |
50 | 25 | RWP115 | RCC11-R4-5025 |
50 | 35 | RWP150 | RCC11-R4-5035 |
50 | 35 | RWP150 | RCC11-R4-5035 |
70 | 25 | RWP150 | RCC11-R4-7025 |
70 | 35 | RWP150 | RCC11-R4-7035 |
70 | 50 | RWP200 | RCC11-R4-7050 |
70 | 70 | RWP200 | RCC11-R4-7070 |
95 | 35 | RWP200 | RCC11-R4-9535 |
95 | 50 | RWP200 | RCC11-R4-9550 |
95 | 70 | RWP250 | RCC11-R4-9570 |
95 | 95 | RWP250 | RCC11-R4-9595 |
120 | 25 | RWP200 | RCC11-R4-12025 |
120 | 35 | RWP200 | RCC11-R4-12035 |
120 | 50 | RWP250 | RCC11-R4-12050 |
120 | 70 | RWP250 | RCC11-R4-12070 |
120 | 95 | 2X RWP150 | RCC11-R5-12095 |
120 | 120 | 2X RWP150 | RCC11-R5-120120 |
150 | 50 | RWP250 | RCC11-R4-15050 |
150 | 70 | 2X RWP150 | RCC11-R5-15070 |
150 | 95 | 2X RWP150 | RCC11-R5-15095 |
150 | 120 | 2X RWP200 | RCC11-R5-150120 |
150 | 150 | 2X RWP200 | RCC11-R5-150150 |
185 | 70 | 2X RWP150 | RCC11-R5-18570 |
185 | 95 | 2X RWP200 | RCC11-R5-18595 |
185 | 120 | 2X RWP250 | RCC11-R5-185120 |
185 | 150 | 2X RWP250 | RCC11-R5-185150 |
185 | 185 | 2X RWP250 | RCC11-R5-185185 |
240 | 95 | 2X RWP250 | RCC11-R5-24095 |
240 | 120 | 2X RWP250 | RCC11-R5-240120 |
240 | 150 | 3X RWP200 | RCC11-R5-240150 |
240 | 185 | 3X RWP200 | RCC11-R5-240185 |
240 | 240 | 3X RWP250 | RCC11-R5-240240 |
300 | 300 | 4X RWP250 | RCC11-R5-300300 |
400 | 400 | 5X RWP250 | RCC11-R5-400400 |
8mmØ | 8mmØ | RWP150 | RCC11-R4-88SC |
10mmØ | 10mmØ | RWP150 | RCC11-R4-1010SC |
A | B | Weld & Ignition Powder | Mould |
---|---|---|---|
mm² | mm² | ||
10 | 10 | RWP045 | RCC14-R4-1010 |
16* | 16 | RWP045 | RCC14-R4-1616 |
25 | 25 | RWP045 | RCC14-R4-2525 |
35 | 35 | RWP065 | RCC14-R4-3535 |
35 | 25 | RWP065 | RCC14-R4-3525 |
8mmØ | 8mmØ | RWP090 | RCC14-R4-88SC |
50 | 50 | RWP090 | RCC14-R4-5050 |
50 | 35 | RWP090 | RCC14-R4-5035 |
50 | 25 | RWP090 | RCC14-R4-5025 |
10mmØ | 10mmØ | RWP115 | RCC14-R4-1010SC |
70 | 70 | RWP115 | RCC14-R4-7070 |
70 | 50 | RWP115 | RCC14-R4-7050 |
70 | 35 | RWP090 | RCC14-R4-7035 |
70 | 25 | RWP090 | RCC14-R4-7025 |
95 | 95 | RWP150 | RCC14-R4-9595 |
95 | 70 | RWP150 | RCC14-R4-9570 |
95 | 50 | RWP150 | RCC14-R4-9550 |
95 | 35 | RWP115 | RCC14-R4-9535 |
120 | 120 | RWP200 | RCC14-R4-120120 |
120 | 95 | RWP200 | RCC14-R4-12095 |
120 | 70 | RWP200 | RCC14-R4-12070 |
120 | 50 | RWP150 | RCC14-R4-12050 |
120 | 35 | RWP150 | RCC14-R4-12035 |
150 | 150 | 2X RWP150 | RCC14-R5-150150 |
150 | 120 | RWP250 | RCC14-R4-150120 |
150 | 95 | RWP200 | RCC14-R4-15095 |
150 | 70 | RWP150 | RCC14-R4-15070 |
150 | 50 | RWP150 | RCC14-R4-15050 |
185 | 185 | 2X RWP150 | RCC14-R5-185185 |
185 | 150 | 2X RWP150 | RCC14-R5-185150 |
185 | 120 | RWP250 | RCC14-R4-185120 |
185 | 95 | RWP200 | RCC14-R4-18595 |
185 | 70 | RWP200 | RCC14-R4-18570 |
240 | 240 | 2X RWP200 | RCC14-R5-240240 |
240 | 185 | 2X RWP150 | RCC14-R5-240185 |
240 | 150 | 2X RWP150 | RCC14-R5-240150 |
240 | 120 | RWP250 | RCC14-R4-240120 |
240 | 95 | RWP250 | RCC14-R4-24095 |
300 | 300 | 2X RWP250 | RCC14-R5-300300 |
300 | 240 | 2X RWP250 | RCC14-R5-300240 |
300 | 185 | 2X RWP200 | RCC14-R5-300185 |
300 | 150 | 2X RWP150 | RCC14-R5-300150 |
300 | 120 | 2X RWP150 | RCC14-R5-300120 |
Joint Type | ||
---|---|---|
RCC1 | ||
RCC2 | ||
RCC4 | ||
RCC6 | ||
RCC7 | ||
RCC11 | ||
RCC14 |
All products provided below with slider to find faster.
