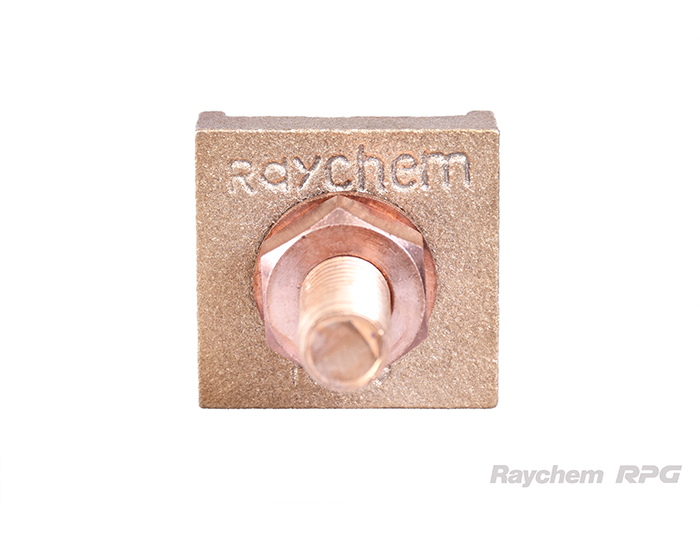

Bonding copper tapes to steel surfaces
- B Type Bond Clamps are designed to bond copper tapes to flat metal surfaces.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
B Bond Clamps |
||||
|---|---|---|---|---|
|
S.No. |
Product Code |
Max. Tape Width in mm |
Bolt Size |
Conductor Tape Material |
|
1 |
RBB - 01 |
26 |
M10 |
Copper |
|
2 |
RBB - 03 |
31 |
M10 |
Copper |
|
B Bond Clamps are made as per IEC 62561-1, BS EN 50164-1 and EN 50164-1 standards&n |
||||
Technical Information
| Parameter |
|---|
| B- Bond Clamps are made from copper alloy |
| Designed and tested for Class H category - Heavy Duty |
| Withstands lightning impulse current of 100 kA |
Certifications
IEC certified
More info available on request
