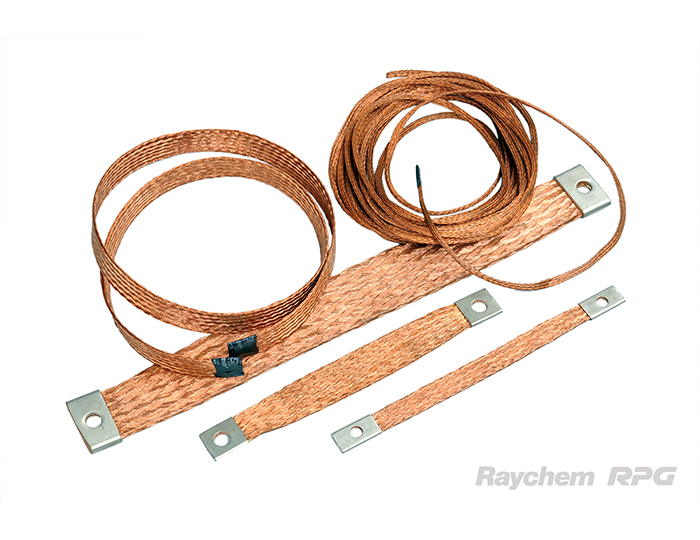

Bonding doors, metal gates, etc.
- Flexible Braids are used for continuous current, grounding, and bonding applications for equipotential bonding.

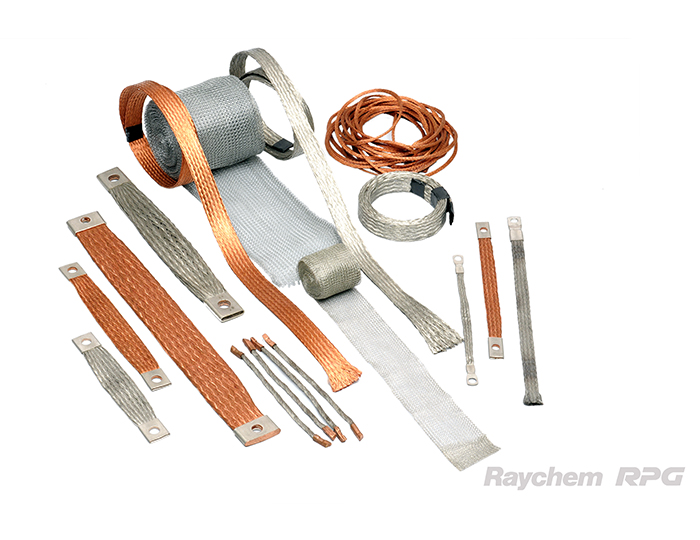

- Tinned flexible copper braids are utilized as flexible earth bonding leads with additional corrosion resistance.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Flat Flexible Earth Braids |
|||||
|---|---|---|---|---|---|
|
Product Code |
Product Code |
C/S Area |
Nominal Dimension |
Length of Braid |
Hole Dia. |
|
Bare |
Tinned |
Sq.mm. |
mm |
mm |
mm |
|
RBCB 200-6-7 |
RTCB 200-6-7 |
6 |
12 X 1 |
200 |
7 |
|
RBCB 400-6-7 |
RTCB 400-6-7 |
6 |
12 X 1 |
400 |
7 |
|
RBCB 200-10-7 |
RTCB 200-10-7 |
10 |
15 X 1.5 |
200 |
7 |
|
RBCB 400-10-7 |
RTCB 400-10-7 |
10 |
15 X 1.5 |
400 |
7 |
|
RBCB 200-16-9 |
RTCB 200-16-9 |
16 |
19 X 2.5 |
200 |
9 |
|
RBCB 400-16-9 |
RTCB 400-16-9 |
16 |
19 X 2.5 |
400 |
9 |
|
RBCB 200-25-11 |
RTCB 200-25-11 |
25 |
25 X 3 |
200 |
11 |
|
RBCB 400-25-11 |
RTCB 400-25-11 |
25 |
25 X 3 |
400 |
11 |
|
RBCB 200-35-11 |
RTCB 200-35-11 |
35 |
25 X 3.5 |
200 |
11 |
|
RBCB 400-35-11 |
RTCB 400-35-11 |
35 |
25 X 3.5 |
400 |
11 |
|
RBCB 200-50-11 |
RTCB 200-50-11 |
50 |
30 X 5 |
200 |
11 |
|
RBCB 400-50-11 |
RTCB 400-50-11 |
50 |
30 X 5 |
400 |
11 |
|
RBCB 200-70-13 |
RTCB 200-70-13 |
70 |
32 X 6 |
200 |
13 |
|
RBCB 400-70-13 |
RTCB 400-70-13 |
70 |
32 X 6 |
400 |
13 |
|
RBCB 200-95-13 |
RTCB 200-95-13 |
95 |
37 X 6 |
200 |
13 |
|
RBCB 400-95-13 |
RTCB 400-95-13 |
95 |
37 X 6 |
400 |
13 |
|
RBCB 200-120-17 |
RTCB 200-120-17 |
120 |
45 X 6 |
200 |
17 |
|
RBCB 400-120-17 |
RTCB 400-120-17 |
120 |
45 X 6 |
400 |
17 |
|
RBCB 200-150-17 |
RTCB 200-150-17 |
150 |
50 X 8 |
200 |
17 |
|
RBCB 400-150-17 |
RTCB 400-150-17 |
150 |
50 X 8 |
400 |
17 |
|
Circular Flexible Earth Braids |
||||
|---|---|---|---|---|
|
Product Code |
Product Code |
C/S Area |
Length of Braid |
Hole Dia. |
|
Bare |
Tinned |
Sq.mm. |
mm |
mm |
|
RBCCB 200-6-7 |
RTCCB 200-6-7 |
6 |
200 |
7 |
|
RBCCB 400-6-7 |
RTCCB 400-6-7 |
6 |
400 |
7 |
|
RBCCB 200-10-7 |
RTCCB 200-10-7 |
10 |
200 |
7 |
|
RBCCB 400-10-7 |
RTCCB 400-10-7 |
10 |
400 |
7 |
|
RBCCB 200-16-9 |
RTCCB 200-16-9 |
16 |
200 |
9 |
|
RBCCB 400-16-9 |
RTCCB 400-16-9 |
16 |
400 |
9 |
|
RBCCB 200-25-11 |
RTCCB 200-25-11 |
25 |
200 |
11 |
|
RBCCB 400-25-11 |
RTCCB 400-25-11 |
25 |
400 |
11 |
|
RBCCB 200-35-11 |
RTCCB 200-35-11 |
35 |
200 |
11 |
|
RBCCB 400-35-11 |
RTCCB 400-35-11 |
35 |
400 |
11 |
|
RBCCB 200-50-11 |
RTCCB 200-50-11 |
50 |
200 |
11 |
|
RBCCB 400-50-11 |
RTCCB 400-50-11 |
50 |
400 |
11 |
|
RBCCB 200-70-13 |
RTCCB 200-70-13 |
70 |
200 |
13 |
|
RBCCB 400-70-13 |
RTCCB 400-70-13 |
70 |
400 |
13 |
|
RBCCB 200-95-13 |
RTCCB 200-95-13 |
95 |
200 |
13 |
|
RBCCB 400-95-13 |
RTCCB 400-95-13 |
95 |
400 |
13 |
|
RBCCB 200-120-17 |
RTCCB 200-120-17 |
120 |
200 |
17 |
|
RBCCB 400-120-17 |
RTCCB 400-120-17 |
120 |
400 |
17 |
|
RBCCB 200-150-17 |
RTCCB 200-150-17 |
150 |
200 |
17 |
|
RBCCB 400-150-17 |
RTCCB 400-150-17 |
150 |
400 |
17 |
|
Flexible Earth Braids, flat and circular, are made as per IEC 62561-2:2018, BS EN 50164-2:2009 & BS 7430 standards. |
||||
Technical Information
| Parameter |
|---|
| Wire Diameter: 0.1mm (40SWG) to 0.3mm (30SWG) |
| Material: ETP-Cu. |
| Copper composition: 99.9% |
| Finish: Bare Copper or Tinned Copper |
Certifications
IEC certified
More info available on request
