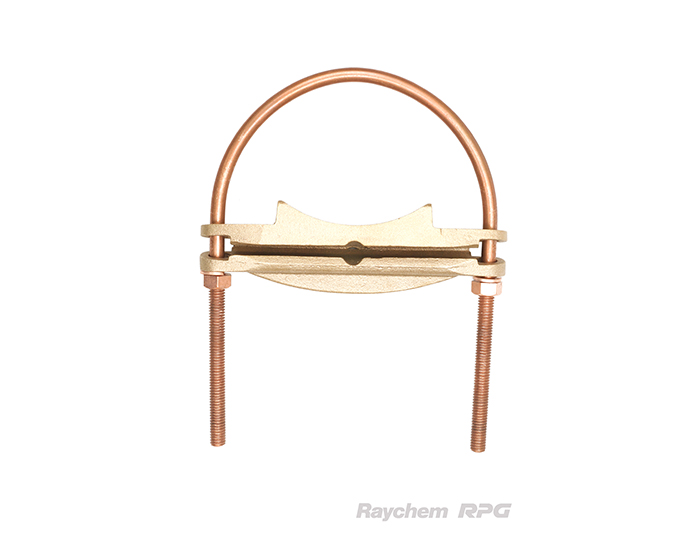

Bonding round conductors to pipes
- Pipe Clamps are used for bonding conductors to pipes.
- They provide earth continuity to pipelines.
- Pipe Clamps -Type 1 provide secure connections between down conductors of vertical stranded cable and metallic pipes.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Pipe Clamp Type 1 |
||||
|---|---|---|---|---|
|
S.No. |
Product Code |
Pipe Dia. In Inch |
Pipe Dia. In mm |
Conductor Range in Sq. mm |
|
1 |
RPC - 101 |
1/2"-1" |
13-25 |
25-95 |
|
2 |
RPC - 102 |
1.1/4"-2" |
32-50 |
25-95 |
|
Pipe Clamps - Type 1 are made as per IEC 62561-1, BS EN 50164-1 and EN 50164-1 standards. |
||||
Technical Information
| Parameter |
|---|
| Pipe Clamps - Type 1 are made from copper alloy with pure copper U-bolt and fasteners |
| Designed for Cass H category - Heavy Duty |
| Assembly consists of two copper alloy plates used for firm clamping of solid round or stranded conductors |
| U-bolt performs the function of bonding pipes to stranded cables |
| Copper alloy used for making the clamp body contains less than 15% zinc |
| Withstands lightning impulse current of 100 kA |
Certifications
IEC certified
More info available on request
