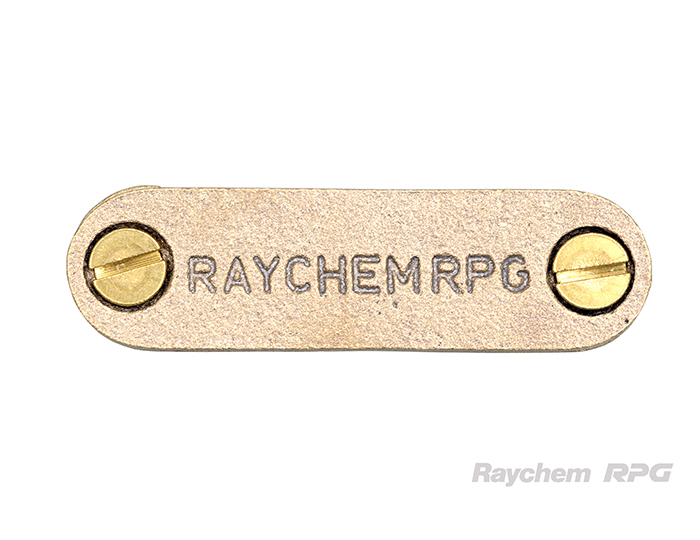

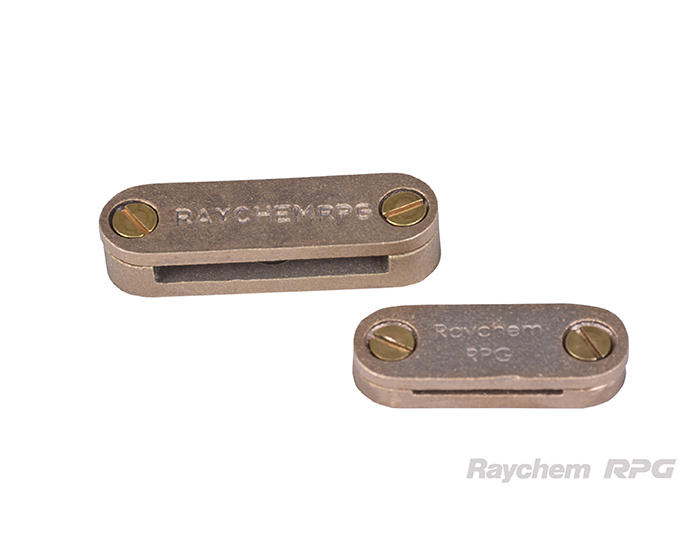

Support to down conductor tape, it is rigid to withstand lightening stresses, thermal expansion and contraction of conductor tapes
- DC Tape clips used for supporting or fixing down conductor tapes
- Mounted at regular intervals along the structure in horizontal or vertical direction, depending on surface of buildings
- Support to down conductor tape, it is rigid to withstand mechanical and lightning stresses, thermal expansion and contraction of conductor tapes
- Catalog
- Add to List
- Enquire Now
Please connect with us
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Part Code |
Tape Size (mm) |
|---|---|
|
RDC-01 |
20 X 3 |
|
RDC-02 |
25 X 3 |
|
RDC-03 |
25 X 4 |
|
RDC-04 |
25 X 6 |
|
RDC-05 |
31 X 3 |
|
RDC-06 |
31 X 6 |
|
RDC-07 |
38 X 3 |
|
RDC-08 |
38 X 5 |
|
RDC-09 |
38 X 6 |
|
RDC-10 |
50 X 3 |
|
RDC-11 |
50 X 4 |
|
RDC-12 |
50 X 6 |
|
RDC-13 |
50 X 8 |
|
RDC-17 |
30 X 5 |
|
RDC-18 |
40 X 5 |
|
RDC-19 |
31 X 7 |
|
RDC-20 |
50 X 5 |
|
D.C. Tape Clips are made as per IEC 62561-1, BS EN 50164-1 and EN 50164-1 standards |
|
Technical Information
| Parameter |
|---|
| D.C. Tape Clips are made from high quality copper alloy |
| Withstands current of 100kA |
Certifications
UL Listed
More info available on request
IEC certified
More info available on request
