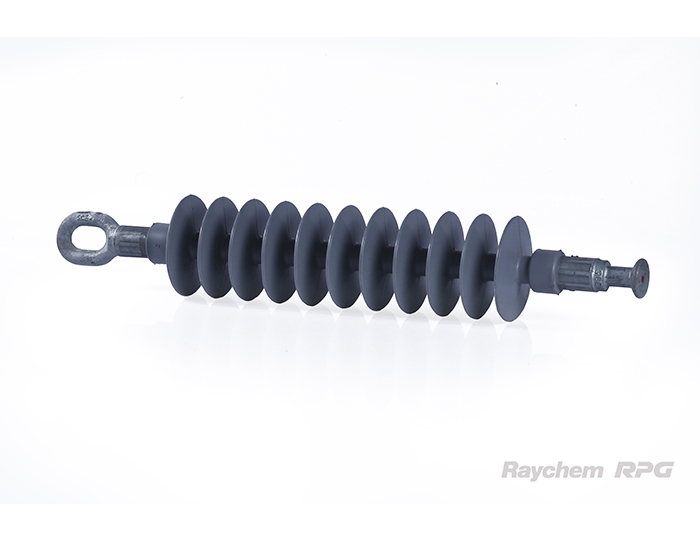

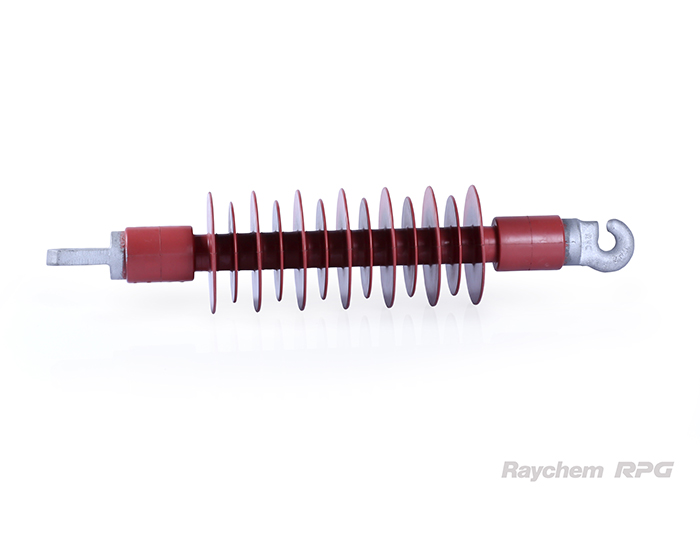

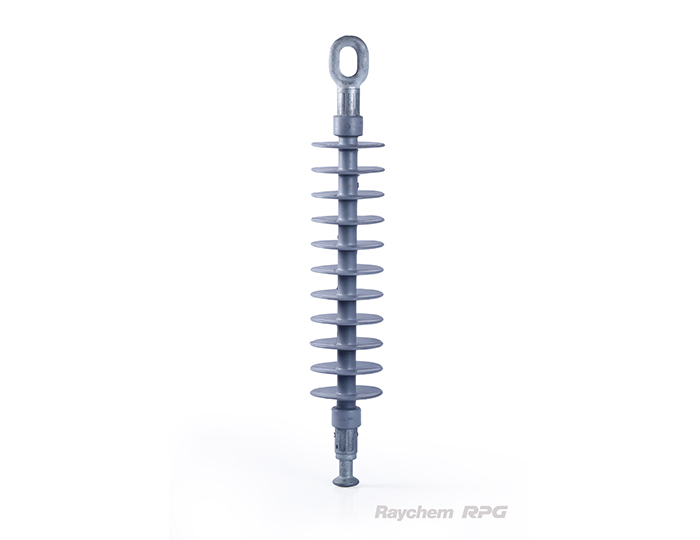

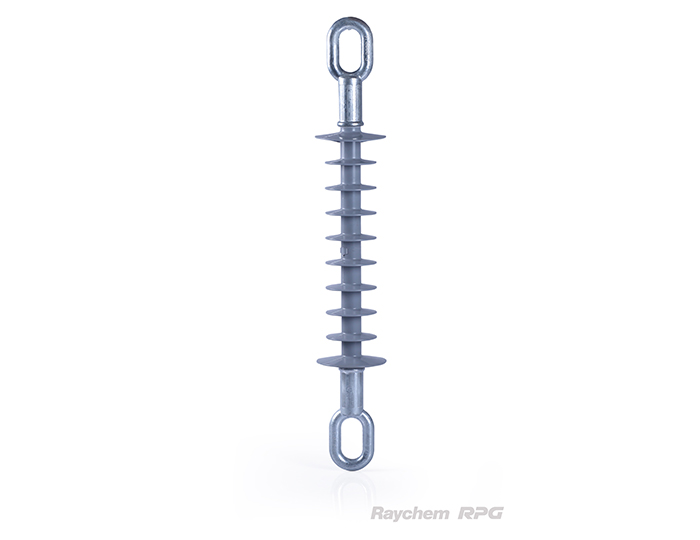

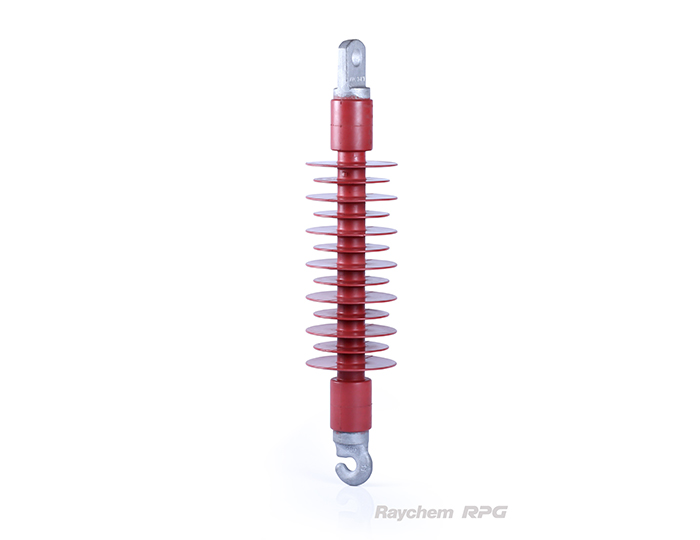

Polymeric Insulators for suspension and tension application up to 110kV. Polymeric Insulators combine mechanical strength with excellent pollution performance. High tensile strength of glass fiber combined with HV shed profile makes the insulator rugged and light weight for tension and suspension application in distribution lines.
- Compact design and break resistant
- Excellent tracking and erosion properties
- Hydrophobic properties for excellent pollution performance
- No maintenance required
- Light weight and easy installation
- Patented crimp design to maximize mechanical strength
- more...
- Catalog
- Add to List
- Enquire Now
Email Us
Chat with UsSpecifications
| Parameter |
|---|
| Available up to 110kV rating |
| Available from 45kN to 120kN mechanical rating |
| Offered in both Silicone & EVA as housing material |
| Available up to 40 mm/ kV creepage distance |
| Product qualification as per IEC 62217, IEC 61109 & ANSI specification |
| Aerodynamic shed profile as per IEC815 |
| Have variety of end fitting options as per IEC61466 |
Technical Information
| Parameter | Value |
|---|---|
| Creepage Distance | 265-3010 |
| Arcing Distance | 125-885 |
| No of Sheds | 3-37 |
| SML (kN) | 45 - 120 |
| RTL (kN) | 22.5 - 60 |
|
Dry AC flashover voltage (kV) |
104-200 |
| Wet AC flashover voltage (kV) | 72-165 |
| Dry AC withstand voltage (kV) | 95-175 |
| Wet AC withstand voltage (kV) | 61-145 |
|
Impulse withstand voltage (kV) |
137-310 |
| End fittings configurations | Ball, Socket, Tongue, Eye, Clevis & Y clevis as per IEC 61466 |
Certifications
CPRI
More info available on request
CESI
More info available on request
ERDA
More info available on request
