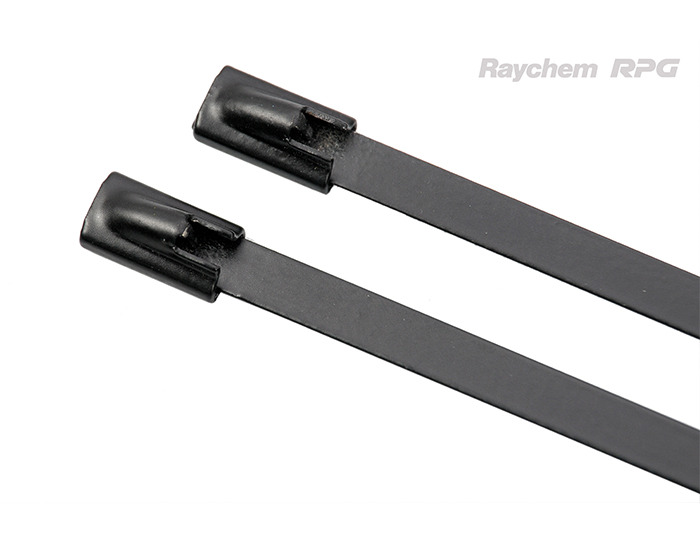

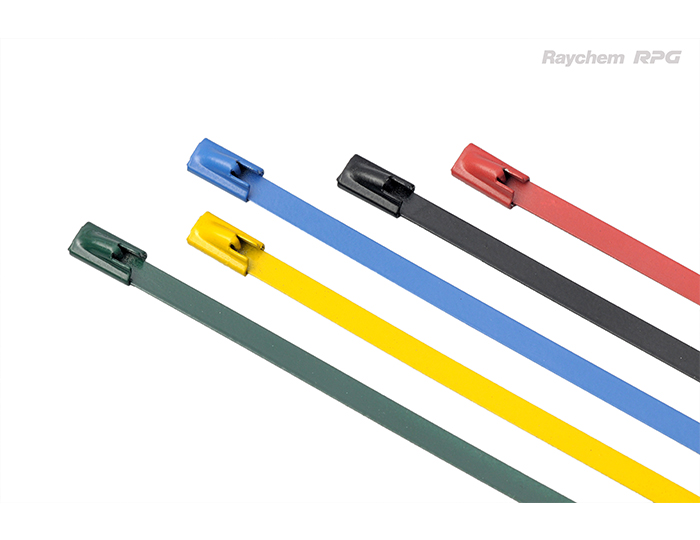

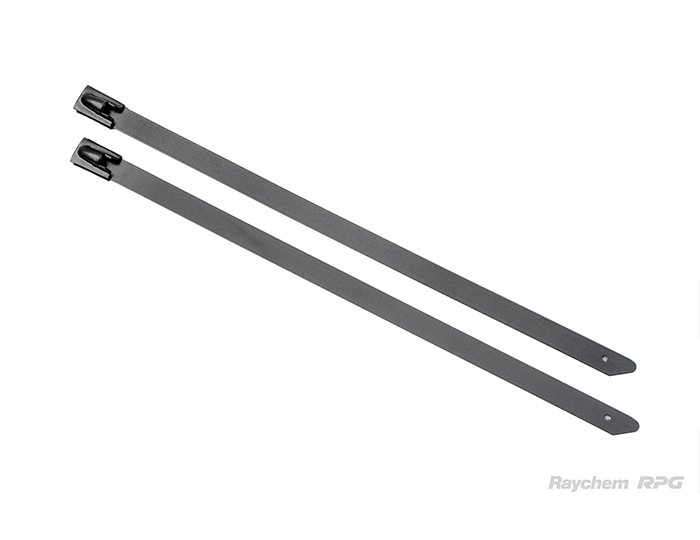

Designed with Wedge Lock Mechanism System, it is offered with Epoxy/Pure Polyester coating. Multi-colored cable ties are available upon request.
- Ball Lock Cable Ties are designed with Wedge Lock Mechanism System for quick installation with low insertion force.
- They are resistant to corrosion and suitable for indoor, outdoor or harsh environments.
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us ebu@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
|
Part No. for Stainless Steel Grade |
Width |
Length |
Thickness |
Max. Bundling Diameter |
Min. Loop Tensile Strength |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS304 |
SS316 |
In |
mm |
In |
mm |
In |
mm |
In |
mm |
N |
lbs |
|
Ball Lock - 4.6 mm width |
|||||||||||
|
BC44-100 |
BC46-100 |
0.18 |
4.6 |
4 |
100 |
0.01 |
0.25 |
0.7 |
18 |
667 |
150 |
|
BC44-127 |
BC46-127 |
0.18 |
4.6 |
5 |
127 |
0.01 |
0.25 |
1.1 |
27 |
667 |
150 |
|
BC44-150 |
BC46-150 |
0.18 |
4.6 |
6 |
150 |
0.01 |
0.25 |
1.3 |
34 |
667 |
150 |
|
BC44-200 |
BC46-200 |
0.18 |
4.6 |
8 |
200 |
0.01 |
0.25 |
2 |
50 |
667 |
150 |
|
BC44-250 |
BC46-250 |
0.18 |
4.6 |
9.8 |
250 |
0.01 |
0.25 |
2.6 |
66 |
667 |
150 |
|
BC44-260 |
BC46-260 |
0.18 |
4.6 |
10 |
260 |
0.01 |
0.25 |
2.7 |
69 |
667 |
150 |
|
BC44-300 |
BC46-300 |
0.18 |
4.6 |
11.8 |
300 |
0.01 |
0.25 |
3.2 |
82 |
667 |
150 |
|
BC44-360 |
BC46-360 |
0.18 |
4.6 |
14 |
360 |
0.01 |
0.25 |
3.9 |
100 |
667 |
150 |
|
BC44-400 |
BC46-400 |
0.18 |
4.6 |
15.7 |
400 |
0.01 |
0.25 |
4.5 |
114 |
667 |
150 |
|
BC44-450 |
BC46-450 |
0.18 |
4.6 |
17.7 |
450 |
0.01 |
0.25 |
5.1 |
130 |
667 |
150 |
|
BC44-520 |
BC46-520 |
0.18 |
4.6 |
20 |
520 |
0.01 |
0.25 |
5.9 |
151 |
667 |
150 |
|
BC44-620 |
BC46-620 |
0.18 |
4.6 |
24 |
620 |
0.01 |
0.25 |
7.2 |
183 |
667 |
150 |
|
BC44-680 |
BC46-680 |
0.18 |
4.6 |
26.8 |
680 |
0.01 |
0.25 |
8 |
203 |
667 |
150 |
|
BC44-840 |
BC46-840 |
0.18 |
4.6 |
33 |
840 |
0.01 |
0.25 |
10 |
253 |
667 |
150 |
|
BC44-1000 |
BC46-1000 |
0.18 |
4.6 |
39 |
1000 |
0.01 |
0.25 |
12 |
304 |
667 |
150 |
|
Ball Lock - 7.9 mm width |
|||||||||||
|
BC74-100 |
BC76-100 |
0.31 |
7.9 |
4 |
100 |
0.01 |
0.25 |
0.7 |
18 |
1112 |
250 |
|
BC74-127 |
BC76-127 |
0.31 |
7.9 |
5 |
127 |
0.01 |
0.25 |
1.1 |
27 |
1112 |
250 |
|
BC74-150 |
BC76-150 |
0.31 |
7.9 |
6 |
150 |
0.01 |
0.25 |
1.3 |
34 |
1112 |
250 |
|
BC74-200 |
BC76-200 |
0.31 |
7.9 |
8 |
200 |
0.01 |
0.25 |
2 |
50 |
1112 |
250 |
|
BC74-250 |
BC76-250 |
0.31 |
7.9 |
9.8 |
250 |
0.01 |
0.25 |
2.6 |
66 |
1112 |
250 |
|
BC74-260 |
BC76-260 |
0.31 |
7.9 |
10 |
260 |
0.01 |
0.25 |
2.7 |
69 |
1112 |
250 |
|
BC74-300 |
BC76-300 |
0.31 |
7.9 |
11.8 |
300 |
0.01 |
0.25 |
3.2 |
82 |
1112 |
250 |
|
BC74-360 |
BC76-360 |
0.31 |
7.9 |
14 |
360 |
0.01 |
0.25 |
3.9 |
100 |
1112 |
250 |
|
BC74-400 |
BC76-400 |
0.31 |
7.9 |
15.7 |
400 |
0.01 |
0.25 |
4.5 |
114 |
1112 |
250 |
|
BC74-450 |
BC76-450 |
0.31 |
7.9 |
17.7 |
450 |
0.01 |
0.25 |
5.1 |
130 |
1112 |
250 |
|
BC74-520 |
BC76-520 |
0.31 |
7.9 |
20 |
520 |
0.01 |
0.25 |
5.9 |
151 |
1112 |
250 |
|
BC74-620 |
BC76-620 |
0.31 |
7.9 |
24 |
620 |
0.01 |
0.25 |
7.2 |
183 |
1112 |
250 |
|
BC74-680 |
BC76-680 |
0.31 |
7.9 |
26.8 |
680 |
0.01 |
0.25 |
8 |
203 |
1112 |
250 |
|
BC74-840 |
BC76-840 |
0.31 |
7.9 |
33 |
840 |
0.01 |
0.25 |
10 |
253 |
1112 |
250 |
|
BC74-1000 |
BC76-1000 |
0.31 |
7.9 |
39 |
1000 |
0.01 |
0.25 |
12 |
304 |
1112 |
250 |
|
Ball Lock - Heavy Duty - 12.7 mm width |
|||||||||||
|
BC124-100 |
BC126-100 |
0.5 |
12.7 |
4 |
100 |
0.02 |
0.4 |
0.7 |
18 |
3115 |
700 |
|
BC124-150 |
BC126-150 |
0.5 |
12.7 |
6 |
150 |
0.02 |
0.4 |
1.3 |
34 |
3115 |
700 |
|
BC124-200 |
BC126-200 |
0.5 |
12.7 |
8 |
200 |
0.02 |
0.4 |
2 |
50 |
3115 |
700 |
|
BC124-260 |
BC126-260 |
0.5 |
12.7 |
10 |
260 |
0.02 |
0.4 |
2.7 |
69 |
3115 |
700 |
|
BC124-360 |
BC126-360 |
0.5 |
12.7 |
14 |
360 |
0.02 |
0.4 |
3.9 |
100 |
3115 |
700 |
|
BC124-520 |
BC126-520 |
0.5 |
12.7 |
20 |
520 |
0.02 |
0.4 |
5.9 |
151 |
3115 |
700 |
|
BC124-620 |
BC126-620 |
0.5 |
12.7 |
24 |
620 |
0.02 |
0.4 |
7.2 |
183 |
3115 |
700 |
|
BC124-840 |
BC126-840 |
0.5 |
12.7 |
33 |
840 |
0.02 |
0.4 |
10 |
253 |
3115 |
700 |
|
BC124-1000 |
BC126-1000 |
0.5 |
12.7 |
39 |
1000 |
0.02 |
0.4 |
12 |
304 |
3115 |
700 |
|
Ball Lock - Heavy Duty - 16.0 mm width |
|||||||||||
|
BC164-150 |
BC166-150 |
0.63 |
16 |
6 |
150 |
0.02 |
0.4 |
1.3 |
34 |
3560 |
800 |
|
BC164-200 |
BC166-200 |
0.63 |
16 |
8 |
200 |
0.02 |
0.4 |
2 |
50 |
3560 |
800 |
|
BC164-260 |
BC166-260 |
0.63 |
16 |
10 |
260 |
0.02 |
0.4 |
2.7 |
69 |
3560 |
800 |
|
BC164-360 |
BC166-360 |
0.63 |
16 |
14 |
360 |
0.02 |
0.4 |
3.9 |
100 |
3560 |
800 |
|
BC164-520 |
BC166-520 |
0.63 |
16 |
20 |
520 |
0.02 |
0.4 |
5.9 |
151 |
3560 |
800 |
|
BC164-620 |
BC166-620 |
0.63 |
16 |
24 |
620 |
0.02 |
0.4 |
7.2 |
183 |
3560 |
800 |
|
BC164-840 |
BC166-840 |
0.63 |
16 |
33 |
840 |
0.02 |
0.4 |
10 |
253 |
3560 |
800 |
|
BC164-1000 |
BC166-1000 |
0.63 |
16 |
39 |
1000 |
0.02 |
0.4 |
12 |
304 |
3560 |
800 |
Technical Information
| Parameter | Value |
|---|---|
| Material | A) 316 grade non-magnetic stainless steel |
| B)304grade non-magnetic stainless steel | |
| Temperature Range | -60°C to +150°C |
| Surface Finish | Epoxy Coating/Pure Polyester |
| Flammability Rating | UL94 fireproof, Halogen free and UV-resistant |
| Multicolor | Available |
| Tested | Fire Rated & Short Circuit Test |
| Package Quantity | 100 Pcs/Bag |
Certifications
UL Listed
More info available on request
ABS Certified
More info available on request
DNV Certified
More info available on request
