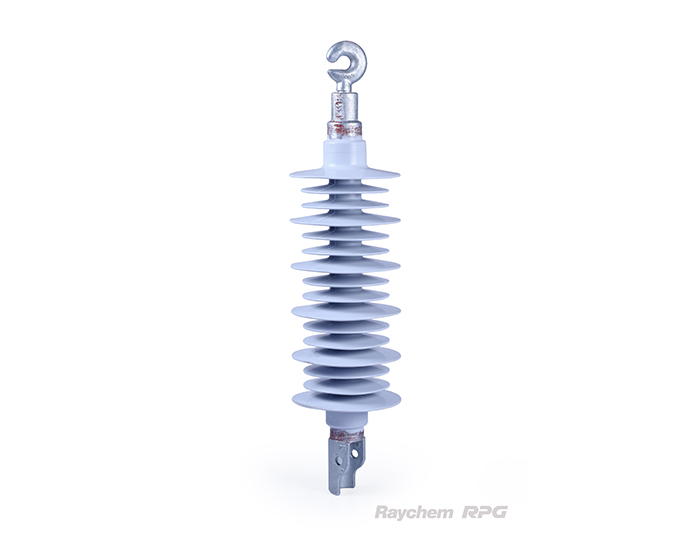

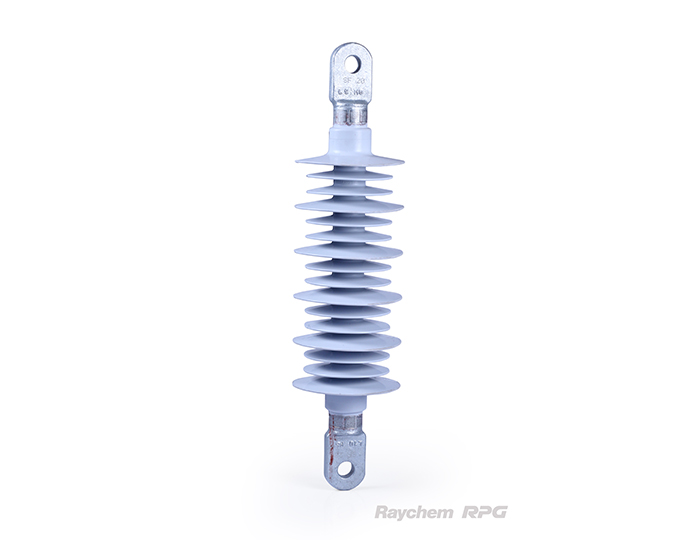

Composite Insulators for 25 KV line Stay, Bracket and 9Tonnes. Polymeric Insulator combines mechanical strength with excellent pollution-free performance. High tensile strength of glass fibre combined with HV shedded profile produces rugged, lightweight tension insulators for overhead line applications. Railway Polymeric Insulator combines mechanical strength with excellent pollution performance. High tensile strength of the glass fibre combined with HV shedded profile, makes it a rugged and lightweight tension insulator for overhead line applications.
- Composite design
- Silicone housing
- Patented crimp technology
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us epd@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
| Parameter |
|---|
| Lightweight, ease of installation and reduced transport costs |
| Vandal and break resistant |
| High tracking and erosion resistance |
| Excellent performance under polluted conditions |
| Reduced maintenance costs |
| Maximum mechanical strength without damaging fibre glass rod |
Technical Information
| General characteristics: | Unit | 9 Tonne | Bracket Tube | Stay Arm Tube |
|---|---|---|---|---|
| Applicable standard |
IEC 61109, IEC 62217 & RDSO specification No T1/SPC/OHE/INSCOM/1071, Rev.1 |
|||
| Material of FRP rod | Boron free, ECR grade | |||
| Material of housing | Silicone, Grey | |||
| Mechanical Characteristics: | ||||
| Type of shed profile | Aerodynamic | |||
| Applicable standard for shed profile | IEC 60815 | |||
| Creepage distance | mm | 1600 & 1050 | ||
| Specified tensile load | kgf | 11,000 | 7,000 | 7,000 |
| Specified cantilever load | Kgf.m | 210 | 200 | 200 |
| Electrical Characteristics: | ||||
| Nominal system voltage | kV rms | 25 | ||
|
Wet power frequency withstands voltage (Horizontal Position) |
kV rms | 125 | ||
| (Vertical Position) | kV rms | 100 | ||
|
Dry lighting impulse withstand voltage. (Positive Polarity) |
kVp | 240 | ||
| (Negative Polarity) | kVp | 260 | ||
| Visible discharge test voltage | kV rms | 35 | ||
