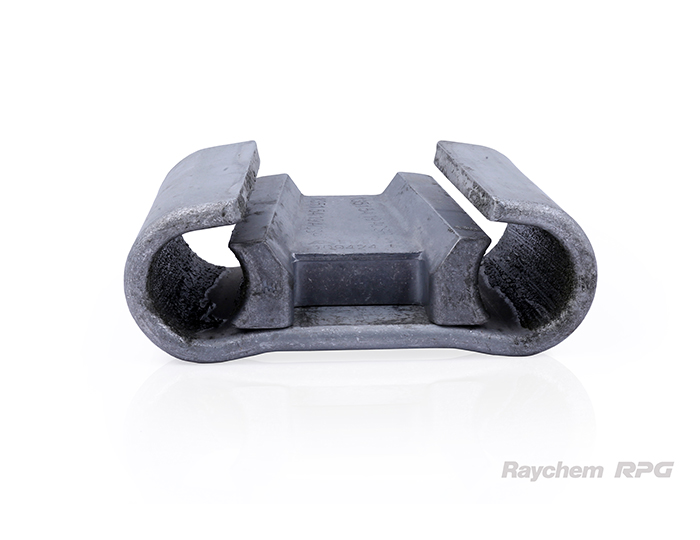

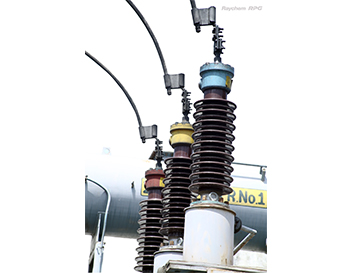

Boltless low power loss C-Wedge Type Connectors used in Distribution and High Voltage Networks. AMPACT C-Wedge type Boltless Connectors used for same or different conductor combination or on solid rod equipment terminal connections. Consisting of 2 parts, C-Body and Wedge, it prevents degradation and achieves significantly lower resistance. Thermal cycling causes conductors to expand and contract, but the Connector C-Body spring effect maintains constant contact pressure. It is light in weight and easy to install with power-actuated tools.
- Available for same/different conductor combinations
- More contact surface and no oxidation at connection interface
- Used in Distribution, Sub-stations and Transmission Systems
- Elastic property of C-Member maintains constant force within the connection for life of the connector, while compensating for thermal expansion or creep
- Simple, fool proof method for installation; no fatigue for operator for series of installations and ensures installation process with repeatability and reliability
- Wedge locking prevents loosening of connections
- Easy removal of connector without damaging conductors and re-usable
- Type tested as per IS: 5561 and ANSI 119.4
- Approved by several utilities like KPTCL, KSEB, HVPNL, APTRANSCO, GETCO, TANTRANSCO etc., upto 400kV; we are in the process of qualifying for 765kV application
- more...
- Catalog
- Add to List
- Enquire Now
Specifications
Sr.No. |
Connector |
Network |
Conductor Range (mm) |
|||
---|---|---|---|---|---|---|
Main Conductor |
Tap Conductor |
|||||
Min. |
Max. |
Min. |
Max. |
|||
1 |
AMPACT Universal Distribution Connector (UDC) |
Distribution |
3.17 |
14.6 |
1.74 |
10.11 |
2 |
AMPACT Mini Wedge Connector |
Distribution / Sub-station |
9.25 |
19.05 |
6.53 |
18.69 |
3 |
AMPACT Wedge Connector |
Distribution / Sub-station / Transmission |
9.25 |
38.2 |
9.25 |
36.2 |
4 |
AMPACT Paddle |
Sub-station |
2/4 Hole Paddle |
|||
610/895/1400 Amp |
||||||
Shank Dia – 12/18/28 mm |
||||||
5 |
Palm Connector |
Sub-station |
Palm Connector D50/D40/D38/D30/D22 |
Technical Information
SL. No. |
Description |
Value Guaranteed by the Bidder |
---|---|---|
1. |
Reference standards |
IS 5561 and ANSI 119.4 |
2. |
AMPACT Universal Distribution Connector (UDC): |
|
a) |
Material of C-Body |
Tin plated Copper Alloy |
b) |
Material of wedge |
Tin plated Copper Alloy |
c) |
Hardware |
Not Applicable |
d) |
Installation Tool |
Parallel Jaw Piller |
e) |
Corrosion Resistance |
Pre coated with Corrosion Inhibitor Compound |
3. |
AMPACT Mini Wedge Connector/Wedge Connector: |
|
a) |
Material of C-Body |
Alu. Alloy |
b) |
Material of Wedge |
Alu. Alloy |
c) |
Hardware |
Not Applicable |
d) |
Installation & Application Tooling |
Light weight power actuated tool |
e) |
Non-Metallic Material of Connector |
Anti-Corrosion Inhibitor (Pre applied by the factory) contain metallic abrasive grit. |
4. |
Palm Connector: |
|
a) |
Type of Palm Connector |
Bolted Type |
b) |
Material of Palm Connector |
Brass 60/40 |
c) |
Hardware |
Hot Dip Galvanized Steel |
5. |
Paddle: |
|
a) |
Type of Paddle |
Bolted Type |
b) |
Material of Paddle |
Alu. Alloy |
6. |
Packing details |
Standard Wooden Box Packing |
Certifications

ERDA
More info available on request

TISCON
More info available on request

CPRI
More info available on request
