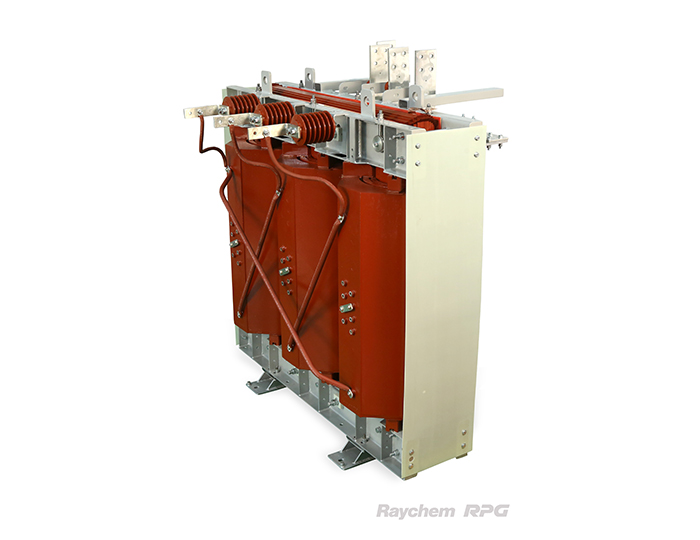

For special and industrial applications. Raychem RPG has become the first Indian company to receive the E3, C3, and F1 certification for its cast resin transformers (CRTs), setting a new standard in safety, performance, and sustainability. This global certification was awarded after stringent testing at CESI, Italy.
High Safety Classifications: RRPL The First ever Indian manufacturer Certified with E3 C3 F1 milestone as per IEC 60076- part 11
CRTs excel in distribution, converter duty, and indoor utility networks, handling overloads and voltage distortion efficiently.
Wide Rating Range – CRT up to 20 MVA / 33 kV suitable for commercial, industrial, and utility environments.
Proven Reliability – Backed by successful short-circuit tests such as the 6 MVA, 20/0.63 kV CRT Transformer, demonstrating strong mechanical and thermal durability.
Fire-Resistant & Moisture-Proof Design – The encapsulated windings (CRT) provide excellent resistance against humidity, dust, chemical contaminants, and flame propagation.
Low Maintenance – No dielectric fluids, reduced monitoring needs, and minimal risk of insulation degradation.
- more...
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us transformers@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
| Parameter | Value |
|---|---|
| Rating | 100 kVA to 20 MVA |
| Voltage Class | Up to 33kV |
| Frequency | 50/60 Hz |
| No. of Phase | Single & Three Phase |
| Cooling | AN/AF |
| Vector Group | As per customer requirement |
| Winding Material | Cu/Al (Conductor & Foil) |
| Tapping | OCTL, OCTC, OLTC |
| Insulation Class | F,H |
| Applicable Standards | IS 2026 – 11 (Part 11) / IEC 60076 -11 |
Installation ManualTechnical Information
| Parameter | Value |
|---|---|
| Solutions to special applications | 6 & 12 pulse transformer |
| K Rated transformer | |
| Motor starting transformer | |
| Excitation transformer | |
| Scott connected transformer | |
| 3-Phase to 2-Phase open delta transformer | |
| Auto transformer | |
| Upto 48 secondary winding transformer | |
| Converter duty transformer | |
| Wind transformer | |
| Lighting transformer | |
| Metro application transformer | |
| Shunt Reactor | |
| Supply Segments | Infrastructure |
| Industries | |
| OEM | |
| Oil & Gas | |
| Hydro | |
| Metro | |
| IP protection upto IP44; smaller ratings upto IP54 | |
| Include default accessories like surge arresters, space heaters, temperature sensors / indicator, anti-vibration pads, etc. | |
| Winding casting carried out in automated Casting Plant. It ensures lowest PD levels | |
Certifications
VIRLAB Certified
VIBRATION TEST
KEMA LABS
E3, C3, F1 Certification
