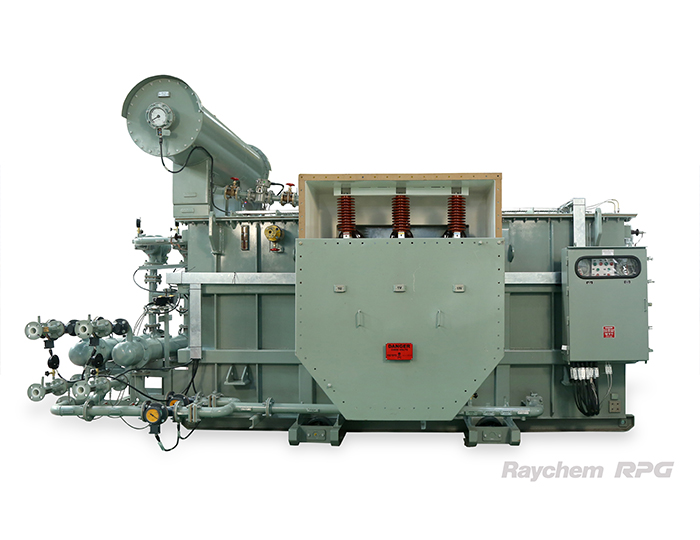

Furnace Transformer
Related Tags :
High current transformer
No Search Result
Contact Us
Connect with us by clicking on one of the following options.
Sales Enquiry Visit Contact Page
Grievance Officer grievance_officer@raychemrpg.com- Other Enquiry info@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
0
-
-
Your List Is Empty
- View Products
Share
- Features
- Help & Support
Withstands high currents, mechanical and thermal stresses
- Designed for extra high currents compared to conventional transformers
- Large low voltage variation to suit furnace application
- OFWF cooling with 100% standby capacity
- Withstands repeated high mechanical and thermal stresses from electric arcs
High Power Handling – Designed up to 18 MVA / 33 kV, suitable for steel plants, ferrous and non-ferrous smelting, and high-capacity induction systems.
Robust Cooling Systems – Equipped with ONAN, ONAF, and OFWF cooling configurations to manage extreme heat generation and continuous overload cycles.
Reinforced Mechanical Structure – Heavy-duty windings, strengthened clamping, and robust core assembly withstand mechanical forces during frequent short circuits.
Thermal & Harmonic Resilience – Engineered to handle high harmonic content and intense thermal cycling without compromising insulation integrity.
Customizable Tap Arrangements – Allows precise control of furnace output voltage and current to match metallurgical process requirements.
- more...
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us transformers@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Quick Links
Specifications
| Parameter | Value |
|---|---|
| Rating | Up to 30MVA |
|
Primary Voltage |
Up to 33kV |
|
Secondary Voltage |
As per requirement |
|
No of Phase |
Single & 3-Phase |
|
Cooling |
OFWF |
|
Tapping |
As per customer Requirement |
|
Insulation Class |
A |
|
Applicable Standards |
IS2026, IS12977, IEC 60076 |
Technical Information
| Parameter | Value |
|---|---|
| Various types of furnace transformers | Electric Arc |
|
|
Submerged Arc |
|
|
Rectifier Duty |
|
|
Ladle Furnace transformers |
|
Internal series reactor is used to control current fluctuation |
|
|
On load control of Low voltage side |
|
| Specially designed busbar risers for high currents | |
| Supply segment | Industries |
| Drive OEMs | |
|
Steel plant |
|
| Rolling mills | |
| Industries (Cement, Steel, Mining etc.) | |
| Non-Ferrous Metal industries |
