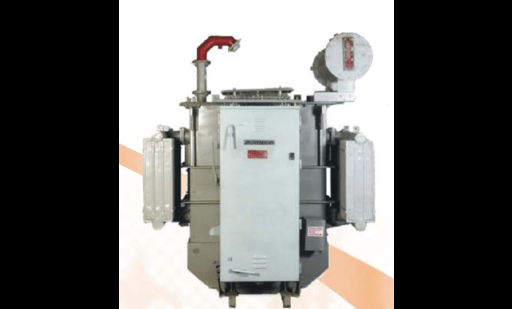

Oil Filled Transformers For Converter Duty Applications

A number of industry applications require Specific Industrial Transformers due to the usage of power (current) as a major resource for production. High-current Rectifier and Converter Transformers need a specific design to supply the necessary power at a low voltage level. These Oil filled transformers for large drive applications are called special-purpose or Industry Transformers, whose design is tailor-made for high-current solutions for industry applications.

Product Features

• High K-Rating Transformer
• Earthing Shield between HV and LV Winding to isolate the harmonic distortion from LV to HV Winding
• Durable
• High Efficiency
• Low Maintenance
• Automatic On/Off cooling option

Specifications

• Rating: Upto 12000KVA
• Voltage Class: Upto 33kV
• Frequency: 50/60 Hz or as per requirement
• Vector Group: Dd0y11/Dd0yn11/Dy11d0/Dd0y1
• Cooling: ONAN/ANAN/ONAF/ANAF
• Applicable Standard: IS, IEC, IEEE, ANSI, JIS Etc
• Winding Material: Copper
• Insulation Class: A

Application

• Variable speed drives (VSD)
• Aluminium electrolysis
• DC arc furnace
• Graphitizing furnaces
• Traction substations
• Copper refining
