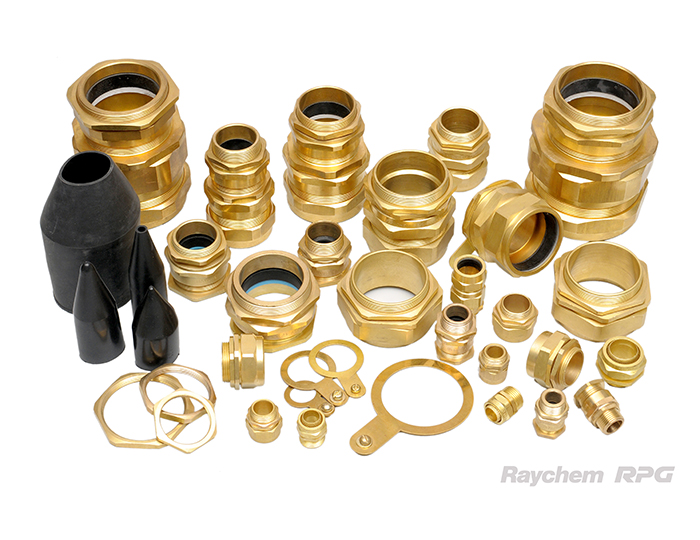

Metallic cable glands with varied sealing systems to suit industrial application and tested as per Standard BS 6387:2013
- Raychem RPG Cable glands are designed for use with all types of electrical power, control, instrumentation, data telecommunications cables and fire rated cables.
- They are used as a sealing and termination device to ensure the characteristics of the enclosure in which the cable enters is maintained adequately.
- Catalog
- Add to List
- Enquire Now
Chat with UsSpecifications
|

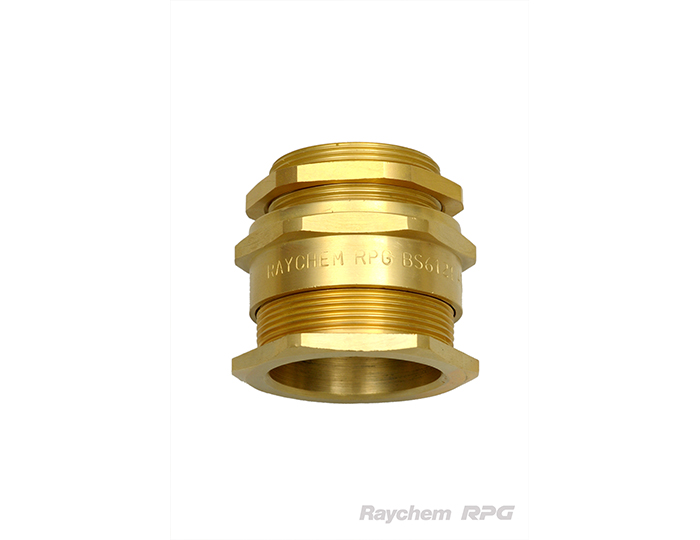

A1/A2: |

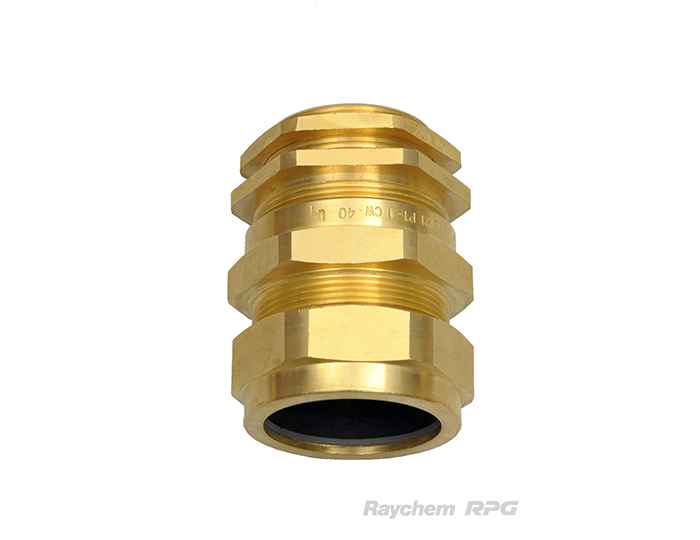

|---|
| Superior cable retention and strain relief |
| Minimum temperature rating up to -50°C |
| Maximum temperature up to +135°C |
| Wide cable range of cable glands |
| Material - Brass/Nickel plated |
| CW: | |
|---|---|
| Suitable for use in industrial (safe) areas with armoured cablesRating |
SWA (steel wire armoured) |
|
AWA (aluminium wire armoured) |
|
|
Single compression seal |
|

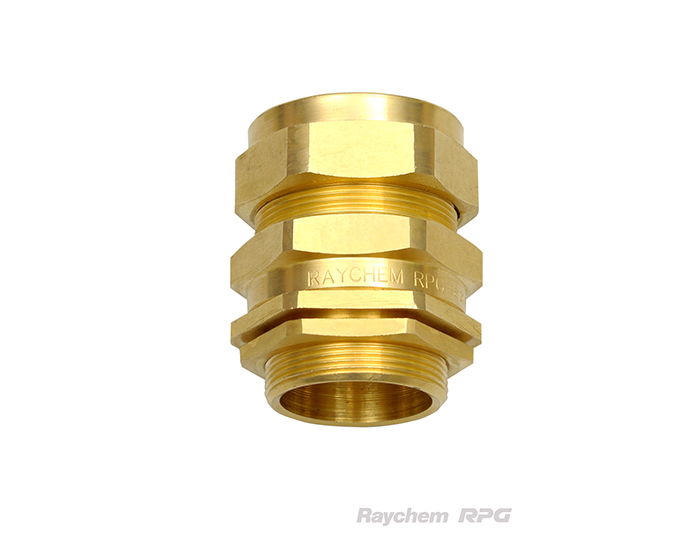

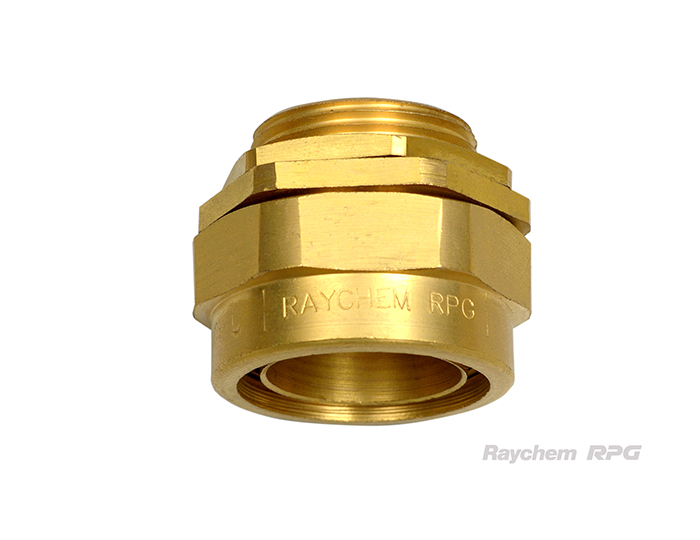

| Minimum temperature rating up to -50°C | |
| Maximum temperature up to +135°C | |
| Wide cable range of cable glands | |
| Material - Brass/Nickel plated | |
| E1W: |
|---|
| Superior cable retention and strain relief |
| Double compression seal |
| Minimum temperature rating up to -50°C |
| Maximum temperature up to +135°C |
| Wide cable range of cable glands |
| Material - Brass/Nickel plated |
| BW: |
|---|
| Superior cable retention and strain relief |
| Minimum temperature rating up to -50°C |
| Maximum temperature up to +135°C |
| Wide cable range of cable glands |
| Material - Brass/Nickel plated |
Instructions ManualTechnical Information
| A1/A2: | ||
|---|---|---|
| Parameters | A1/A2 | |
| RAW MATERIAL | Brass/Nickel plated brass | |
| IP (IEC 60529) | IP 66 | |
| Mechanical Specifications | Cable Anchorage | Class A |
| Impact Category | CATEGORY 6 | |
| Service Temperature | Neoprene seal: -40oC to +100oC Silicone seal: -50oC to +135oC |
|
| Seal | Single | |
| Accessories | Shrouds/locknuts/earth tags | |
| Cable type | Unarmoured | |
| Certifications | IEC 62444 EN 62444 BS 6387:2013 | |
| A1/A2: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Cable Gland Type | Standard entry threads (D) | Optional entry Thread | Overall Cable Diameter (A) |
Gland Dimensions | |||||
| Entry Thread | Protrusion length (F) | Hexagon Size | |||||||
| Metric Thread type | NPT Thread type (ordering suffix) | Min. dia. (mm) | Max. dia (mm) | Entry Thread Diameter ( D ) | Entry Thread Length ( E ) | Across Flat (G mm) |
Across Corner (H mm) |
||
| RRPL A1/A2 20/16L | M20 | NPT1/2” (N12S) | 3.50 | 8.00 | 20.00 | 10.00 | 20.00 | 22.00 | 24.50 |
| RRPL A1/A2 20 S | M20 | NPT1/2” (N12M) | 8.50 | 12.00 | 20.00 | 15.00 | 22.00 | 24.00 | 26.00 |
| RRPL A1/A2 20 L | M20 | NPT1/2” (N12L) | 8.00 | 13.00 | 20.00 | 15.00 | 22.00 | 26.00 | 29.00 |
| RRPL A1/A2 25 S | M25 | NPT3/4” (N34S) | 9.00 | 17.50 | 25.00 | 15.00 | 25.00 | 30.00 | 33.00 |
| RRPL A1/A2 25 L | M25 | NPT3/4” (N34L) | 14.00 | 21.00 | 25.00 | 15.00 | 26.00 | 33.50 | 37.00 |
| RRPL A1/A2 32 L | M32 | NPT1” (N1L) | 18.50 | 26.00 | 32.00 | 15.00 | 30.00 | 41.00 | 45.50 |
| RRPL A1/A2 40 L | M40 | NPT1-1/4”(N114L) | 25.00 | 33.00 | 40.00 | 15.00 | 31.00 | 50.00 | 55.50 |
| RRPL A1/A2 50 S | M50 | NPT1-1/2” (N112L) | 31.00 | 38.00 | 50.00 | 15.00 | 33.00 | 55.00 | 60.50 |
| RRPL A1/A2 50 L | M50 | NPT2” (N2S) | 35.00 | 44.00 | 50.00 | 15.00 | 33.00 | 59.50 | 67.00 |
| RRPL A1/A2 63 S | M63 | NPT2” (N2L) | 39.00 | 49.30 | 63.00 | 15.00 | 35.00 | 70.00 | 77.00 |
| RRPL A1/A2 63 L | M63 | NPT2-1/2” (N212S) | 46.00 | 53.50 | 63.00 | 15.00 | 35.00 | 74.00 | 80.00 |
| RRPL A1/A2 75 S | M75 | NPT2-1/2” (N212L) | 53.00 | 61.50 | 75.00 | 15.00 | 35.00 | 82.00 | 90.50 |
| RRPL A1/A2 75 L | M75 | NPT3” (N3L) | 60.00 | 67.40 | 75.00 | 15.00 | 40.00 | 84.00 | 94.00 |
| RRPL A1/A2 90 L | M90 | NPT3-1/2” (N312L) | 66.50 | 78.00 | 90.00 | 20.00 | 50.00 | 101.00 | 114.00 |
| RRPL A1/A2 100 L | M100 | NPT4” (N4L) | 76.00 | 88.00 | 100.00 | 25.00 | 50.00 | 119.00 | 131.00 |
| *For Fire rated cable glands, part code needs to be – RRPL FR A1/A2 XXXX XXXX – size of cable gland (refer size table) | |||||||||
| CW: | ||
|---|---|---|
| Parameters | CW | |
| RAW MATERIAL | Brass/Nickel plated brass | |
| IP (IEC 60529) | IP 66 | |
| Mechanical Specifications | Cable Anchorage | Class A |
| Impact Category | CATEGORY 6 | |
| Electrical specifications | Category A | |
| Service Temperature | Neoprene seal: -40oC to +100oC Silicone seal: -50oC to +135oC |
|
| Seal | Single | |
| Accessories | Shrouds/locknuts/earth tags | |
| Cable type | Armoured -SWA(steel wire armoured) -AWA(aluminium wire armoured) |
|
| Certifications | IEC 62444 EN 62444 BS 6387:2013 | |
| CW: | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable Gland Type | Standard Entry thread (D) | Optional Entry Thread | Cable Under Armour/ Bedding Diameter (A) | Overall Cable Diameter (B) | Gland Dimensions | |||||||
| Entry Thread | Hexagon Size | Armour Range | ||||||||||
| Metric Thread Type | NPT Thread Type (ordering suffix) | Max. dia.(mm) | Min. dia. (mm) | Max. dia (mm) | Entry Thread Diameter ( D ) |
Entry Thread Length ( E ) |
Protrusion Length (F) |
Across Flat (G mm) |
Across Corner (H mm) |
Min | Max | |
| RRPL CW 16 S | M16 | - | 9.0 | 4.0 | 7.5 | 16.0 | 10.0 | 40 | 20.50 | 22.70 | 0.8 | 1.25 |
| RRPL CW 16 L | M16 | - | 9.0 | 7.0 | 11.0 | 16.0 | 10.0 | 40 | 20.50 | 22.70 | 0.8 | 1.25 |
| RRPL CW 20 S | M20 | NPT1/2”(N12S) | 13.0 | 10.5 | 14.5 | 20.0 | 10.0 | 47 | 22.20 | 24.20 | 0.8 | 1.25 |
| RRPL CW 20 L | M20 | NPT1/2”(N12L) | 14.5 | 14.0 | 18.5 | 20.0 | 10.0 | 47 | 26.20 | 29.00 | 0.8 | 1.25 |
| RRPL CW 25 S | M25 | NPT3/4”(N34S) | 18.6 | 18.4 | 23.2 | 25.0 | 10.0 | 50 | 31.00 | 34.50 | 1.25 | 1.6 |
| RRPL CW 25 L | M25 | NPT3/4”(N34L) | 20.7 | 20.0 | 25.5 | 25.0 | 10.0 | 50 | 36.00 | 39.20 | 1.25 | 1.6 |
| RRPL CW 32 L | M32 | NPT1”(N1L) | 27.4 | 25.5 | 33.0 | 32.0 | 10.0 | 55 | 41.00 | 46.00 | 1.6 | 2.0 |
| RRPL CW 40 S | M40 | NPT1-1/4”(N114S) | 32.7 | 31.0 | 36.5 | 40.0 | 15.0 | 60 | 49.50 | 55.50 | 1.6 | 2.0 |
| RRPL CW 40 L | M40 | NPT1-1/4”(N114L) | 33.5 | 34.5 | 40.0 | 40.0 | 15.0 | 60 | 49.50 | 54.50 | 1.6 | 2.0 |
| RRPL CW 50 S | M50 | NPT1-1/2”(N112L) | 41.0 | 39.0 | 46.7 | 50.0 | 15.0 | 65 | 57.00 | 63.50 | 2.0 | 2.5 |
| RRPL CW 50 L | M50 | NPT2”(N2S) | 44.5 | 43.5 | 51.0 | 50.0 | 15.0 | 65 | 62.00 | 69.60 | 2.0 | 2.5 |
| RRPL CW 63 S | M63 | NPT2”(N2L) | 50.1 | 47.5 | 55.6 | 63.0 | 15.0 | 70 | 73.00 | 81.00 | 2.0 | 2.5 |
| RRPL CW 63 L | M63 | NPT2-1/2”(N212S) | 56.0 | 54.0 | 62.2 | 63.0 | 15.0 | 70 | 78.00 | 86.00 | 2.0 | 2.5 |
| RRPL CW 75 S | M75 | NPT2-1/2”(N212L) | 63.0 | 61.5 | 68.0 | 75.0 | 15.0 | 75 | 84.50 | 95.50 | 2.0 | 2.5 |
| RRPL CW 75 L | M75 | NPT3”(N3L) | 68.0 | 67.0 | 75.5 | 75.0 | 15.0 | 75 | 91.00 | 102.20 | 2.5 | 3.0 |
| RRPL CW 90 S | M90 | NPT3-1/2”(N312S) | 79.0 | 75.5 | 85.0 | 90.0 | 20.0 | 90 | 100.00 | 110.00 | 3.15 | 4.0 |
| RRPL CW 90 L | M90 | NPT3-1/2”(N312L) | 79.0 | 80.0 | 88.7 | 90.0 | 20.0 | 90 | 103.00 | 114.00 | 3.15 | 4.0 |
| *For Fire rated cable glands, part code needs to be – RRPL FR CW XXXX XXXX – size of cable gland (refer size table) | ||||||||||||
| E1W: | ||
|---|---|---|
| Parameters | E1W | |
| RAW MATERIAL | Brass/Nickel plated brass | |
| IP (IEC 60529) | IP 66 | |
| Mechanical Specifications | Cable Anchorage | Class A |
| Impact Category | CATEGORY 6 | |
| Electrical specifications | Category A | |
| Service Temperature | Neoprene seal: -40oC to +100oC Silicone seal: -50oC to +135oC |
|
| Seal | Double | |
| Accessories | Shrouds/locknuts/earth tags | |
| Cable type | Armoured -SWA(steel wire armoured) -AWA(aluminium wire armoured) |
|
| Certifications | IEC 62444 EN 62444 BS 6387:2013 | |
| E1W: | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable Gland Type | Standard Entry Thread (D) | Optional Entry Thread | Cable Under Armour/ Bedding Diameter (A) | Overall Cable Diameter (B ) | Gland Dimensions | Armour | |||||||||||
| Entry Thread | Hexagon Size | Range | |||||||||||||||
| Metric Thread Type | NPT Thread Type (ordering suffix) | Min. dia. (mm) | Max. dia. (mm) | Min. dia. (mm) | Max. dia (mm) | Entry Thread Diameter (D ) | Entry Thread Length ( E ) | Protrusion Length (F) |
Across Flat (G mm) |
Across Corner (H mm) |
Min | Max | |||||
| RRPL E1W 16 L | M16 | - | 3.0 | 7.5 | 6.5 | 11.5 | 16 | 15.0 | 40 | 22.0 | 24.0 | 0.8 | 1.25 | ||||
| RRPL E1W 20 S | M20 | NPT1/2”(N12S) | 6.0 | 10.0 | 10.5 | 15.0 | 20 | 15.0 | 45 | 22.0 | 24.0 | 0.8 | 1.25 | ||||
| RRPL E1W 20 L | M20 | NPT1/2”(N12L) | 10.2 | 14.0 | 14.8 | 19.0 | 20 | 15.0 | 45 | 27.0 | 30.0 | 0.8 | 1.25 | ||||
| RRPL E1W 25 S | M25 | NPT3/4”(N34S) | 12.5 | 16.0 | 18.0 | 21.5 | 25 | 15.0 | 50 | 31.0 | 35.0 | 1.25 | 1.6 | ||||
| RRPL E1W 25 L | M25 | NPT3/4”(N34L) | 14.0 | 19.7 | 19.5 | 25.5 | 25 | 15.0 | 50 | 35.0 | 39.0 | 1.25 | 1.6 | ||||
| RRPL E1W 32 L | M32 | NPT1”(N1L) | 16.8 | 25.0 | 23.0 | 31.3 | 32 | 15.0 | 55 | 44.0 | 48.0 | 1.6 | 2.0 | ||||
| RRPL E1W 40 S | M40 | NPT1-1/4”(N114S) | 24.8 | 31.5 | 31.0 | 38.0 | 40 | 15.0 | 60 | 51.5 | 57.5 | 1.6 | 2.0 | ||||
| RRPL E1W 40 L | M40 | NPT1-1/4”(N114L) | 28.0 | 33.5 | 33.5 | 40.0 | 40 | 15.0 | 60 | 51.5 | 57.5 | 1.6 | 2.0 | ||||
| RRPL E1W 50 S | M50 | NPT1-1/2”(N112L) | 32.0 | 42.0 | 39.0 | 45.0 | 50 | 15.0 | 65 | 64.5 | 72.0 | 2.0 | 2.5 | ||||
| RRPL E1W 50 L | M50 | NPT2”(N2S) | 37.0 | 42.0 | 44.0 | 49.3 | 50 | 15.0 | 65 | 64.5 | 72.0 | 2.0 | 2.5 | ||||
| RRPL E1W 63 S | M63 | NPT2”(N2L) | 41.5 | 50.5 | 48.5 | 58.0 | 63 | 18.0 | 70 | 70.0 | 77.0 | 2.0 | 2.5 | ||||
| RRPL E1W 63 L | M63 | NPT2-1/2”(N212S) | 50.0 | 57.5 | 57.0 | 65.0 | 63 | 18.0 | 70 | 78.0 | 87.5 | 2.0 | 2.5 | ||||
| RRPL E1W 75 S | M75 | NPT2-1/2”(N212L) | 55.0 | 59.5 | 62.0 | 67.0 | 75 | 20.0 | 76 | 84.0 | 92.5 | 2.0 | 2.5 | ||||
| RRPL E1W 75 L | M75 | NPT3”(N3L) | 59.0 | 68.0 | 66.4 | 78.5 | 75 | 20.0 | 79 | 95.0 | 108.0 | 2.5 | 3.0 | ||||
| RRPL E1W 90 L | M90 | NPT3-1/2”(N312L) | 66.5 | 75.5 | 72.0 | 88.0 | 90 | 20.0 | 96 | 105.0 | 122.0 | 3.15 | 4.0 | ||||
| *For Fire rated cable glands, part code needs to be – RRPL FR E1W XXXX XXXX – size of cable gland (refer size table) | |||||||||||||||||
| BW: | ||
|---|---|---|
| Parameters | BW | |
| RAW MATERIAL | Brass/Nickel plated brass | |
| IP (IEC 60529) | IP 2X | |
| Mechanical Specifications | Cable Anchorage | Class A |
| Impact Category | CATEGORY 6 | |
| Electrical specifications | Category A | |
| Service Temperature | Neoprene seal: -40oC to +100oC Silicone seal: -50oC to +135oC |
|
| Seal | No seal | |
| Accessories | Shrouds/locknuts/earth tags | |
| Cable type | Armoured -SWA(steel wire armoured) -AWA(aluminium wire armoured) |
|
| Certifications | IEC 62444 EN 62444 BS 6387:2013 | |
| BW: | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable Gland Type | Standard Entry Thread (D) | Optional Entry Thread | Overall Cable Diameter (B) | Gland Dimensions | Armour Range | ||||||
| Entry Thread | Protrusion Length (F) |
Hexagon Size | |||||||||
| Metric Thread Type | NPT Thread Type (ordering suffix) | Min. dia. (mm) | Max. dia (mm) | Entry Thread Diameter ( D ) | Entry Thread Length ( E ) | Across Flat (G mm) |
Across Corner (H mm) |
Min | Max | ||
| RRPL BW 16 S | M16 | - | 8.0 | 12.0 | 16 | 10 | 23 | 20 | 23 | 0.8 | 1.25 |
| RRPL BW 16 L | M16 | - | 8.6 | 13.5 | 16 | 10 | 23 | 20 | 23 | 0.8 | 1.25 |
| RRPL BW 20 S | M20 | NPT1/2” (N12S) | 12.6 | 16.8 | 20 | 10 | 23 | 22 | 24 | 0.8 | 1.25 |
| RRPL BW 20 L | M20 | NPT1/2” (N12L) | 14.5 | 20.0 | 20 | 10 | 30 | 25 | 28 | 0.8 | 1.25 |
| RRPL BW 25 S | M25 | NPT3/4” (N34S) | 19.5 | 24.5 | 25 | 10 | 30 | 31 | 34 | 1.25 | 1.6 |
| RRPL BW 25 L | M25 | NPT3/4” (N34L) | 20.5 | 26.0 | 25 | 10 | 32 | 32 | 36 | 1.25 | 1.6 |
| RRPL BW 32 L | M32 | NPT1” (N1L) | 22.0 | 32.5 | 32 | 10 | 36 | 40 | 44 | 1.6 | 2.0 |
| RRPL BW 40 S | M40 | NPT1-1/4” (N114S) | 30.0 | 38.0 | 40 | 10 | 36 | 46 | 51 | 1.6 | 2.0 |
| RRPL BW 40 L | M40 | NPT1-1/4”(N114L) | 33.0 | 40.5 | 40 | 15 | 39 | 49 | 55 | 1.6 | 2.0 |
| RRPL BW 50 S | M50 | NPT1-1/2” (N112L) | 40.5 | 49.0 | 50 | 15 | 40 | 57 | 64 | 2.0 | 2.5 |
| RRPL BW 50 L | M50 | NPT2” (N2S) | 44.1 | 54.0 | 50 | 15 | 45 | 62 | 69 | 2.0 | 2.5 |
| RRPL BW 63 S | M63 | NPT2” (N2L) | 51.0 | 58.0 | 63 | 15 | 45 | 69 | 78 | 2.0 | 2.5 |
| RRPL BW 63 L | M63 | NPT2-1/2” (N212S) | 56.2 | 65.5 | 75 | 15 | 50 | 75 | 84 | 2.0 | 2.5 |
| RRPL BW 75 S | M75 | NPT2-1/2” (N212L) | 62.0 | 72.0 | 75 | 15 | 50 | 82 | 93 | 2.0 | 2.5 |
| RRPL BW 75 L | M75 | NPT3” (N3L) | 68.0 | 77.5 | 75 | 15 | 50 | 88 | 99 | 2.5 | 3.0 |
| RRPL BW 90 S | M90 | NPT3-1/2” (N312S) | 78.0 | 87.0 | 90 | 20 | 55 | 100 | 112 | 3.15 | 4.0 |
| RRPL BW 90 L | M90 | NPT3-1/2” (N312L) | 78.5 | 88.0 | 90 | 20 | 55 | 112 | 120 | 3.15 | 4.0 |
| *For Fire rated cable glands, part code needs to be – RRPL FR BW XXXX XXXX – size of cable gland (refer size table) | |||||||||||
Certifications
CE Certified
More info available on request
