MCS for 25 KV high speed requirements - 20 KN and 24 KN. Raychem Indigenous Modular Cantilever System is designed to support the assembly of overhead power transmission wires — i.e., catenary (1000/1200 kgf tension), contact (1000/1200 kgf tension), and droppers — to transfer the overall bending, transverse, and vertical loads to the mast via insulators. The quintessential cantilever is lightweight and robust enough to support the current-carrying assembly for semi-high speed and high-speed trains up to 250 km/h. In addition to these functional requirements, ease of maintenance, transportation, handling, and aesthetics have been considered.
- Simple and light in weight - Factory fitted assembly, ready to install , Ease of installation and servicing at site, Low maintenance and onsite inspection
- Structural integrity- Validated for severe static and dynamic loading condition, Designed for high tension OHE lines for high-speed trains
- Corrosion resistant, long service life and reliable

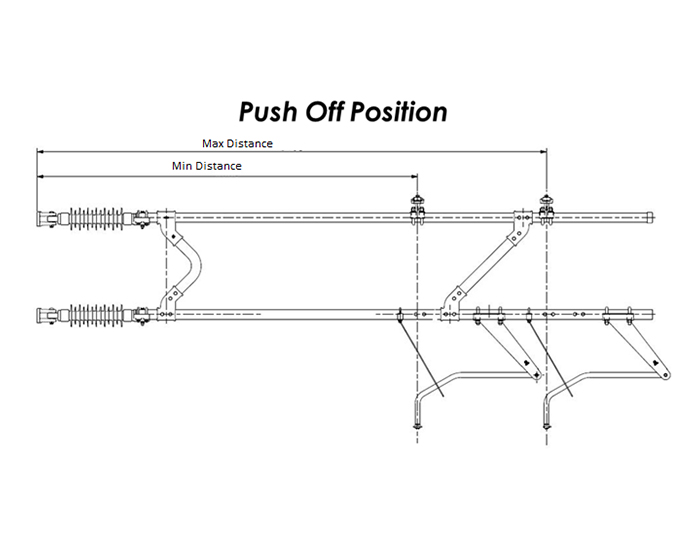

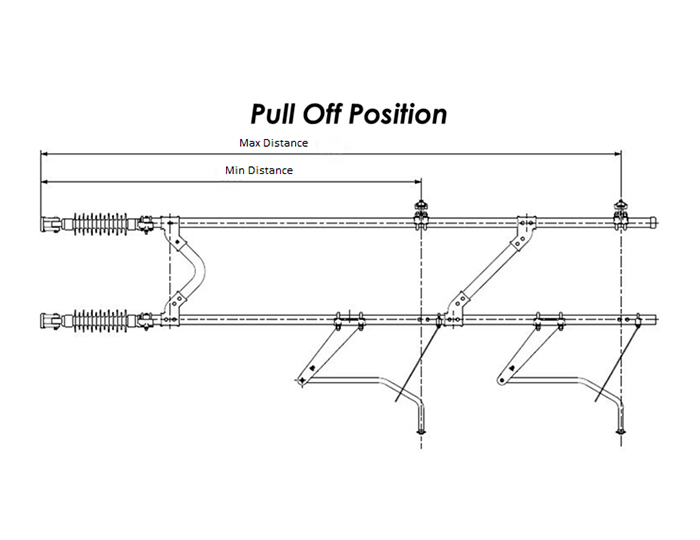

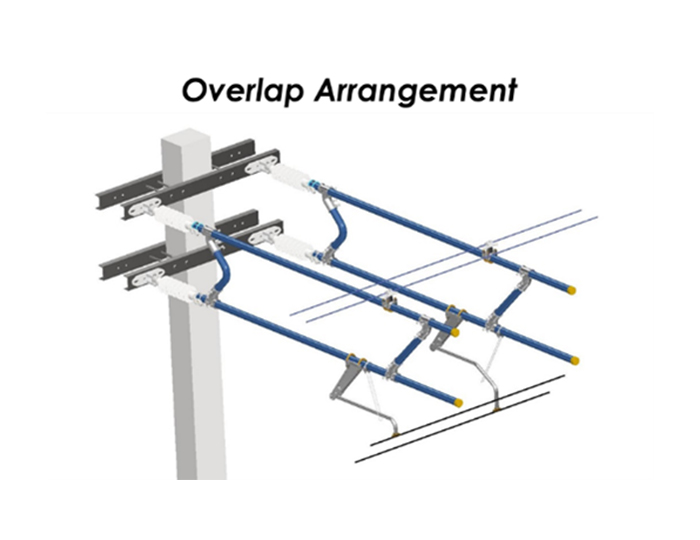

- Suitable at various positions – Push off & pull off, Anti creep, Box , Overlap Arrangements etc
- Best Insulator Technology – Polymeric Insulators providing high mechanical strength combined with polymeric shredded profile making light weight design
- One solution for all variants, different assembly/configurations possible - Pull / Push off for implantation 2.36 m to 3.6 m Anti-creep arrangement Flexibility - box arrangement for yards (1.0m) Stretched length for platform (upto 4.7m) Over
- Ideal for existing and new high-speed Railway lines, DFCC and Metros
- more...
- Catalog
- Add to List
- Enquire Now
Please connect with us
Email Us epd@raychemrpg.com
Chat with Us Mon. to Sat. 9am to 6pm
Specifications
| Parameter |
|---|
| Comply with latest RDSO Specification No. TI/SPC/OHE/MCS/0150(08/2015) |
Technical Information
|
Sr No |
Parameter |
Value |
|---|---|---|
|
1. |
Line Tension |
20/24/30 kN |
|
2. |
Train Speed |
200 Kmph |
|
3. |
Span Length |
≤ 72 m |
|
4. |
Stagger |
Upto 0.3m |
|
5. |
Encumbrance |
Max. 1.4 m |
|
6. |
Implantation/Setting Distance |
2.36 – 3.6 m |
